Special offer
Out of Stock
Power Supply, ENDORFY, EY7A007, 650 Watts, Efficiency 80 PLUS GOLD, MTBF 100000 hours, EY7A007
MPN:
EY7A007
Brand:
ENDORFY
Cable Management:
Fully-Modular
€152.75
/ incl. VAT
€126.24
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description

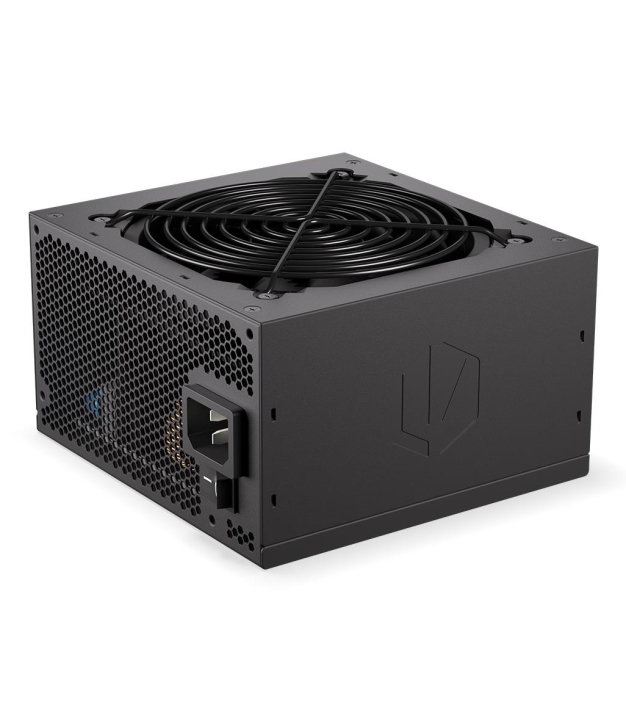

The Supremo FM5 Gold 650W is an efficient power supply with a 120 mm Fluctus fan that ensures your PC runs stably without unexpected resets interruptions. This bad boy is equipped with Japanese electrolytic and aluminum-polymer capacitors so you can squeeze the last juices out of it without a hitch. No wonder it is 80 PLUS® Gold certified ;)
Supremo FM5 Gold 650W
When you've spent half your life by the computer, you know that stable component operation = trouble-free boss battles (including those in the office). And that's why we created the Supremo FM5 Gold 650W.
It's an efficient and relatively small (14 cm long) power supply with DC-DC topology dedicated to special tasks demanding components. We're serious – we've packed in everything we think you need to fine-tune the voltage and deliver continuous 650W of power without unexpected resets or a blue screen. We also fit a 12 cm 120 mm Fluctus fan, which will stay cool (literally!) and take care of the right temperature inside the PSU. No wonder our Supremo got the 80 PLUS® Gold certification :)
Specifications
General
Model Name
EY7A007
CN Code
85044095
Power
Input Frequency
50/60 Hz
Input Voltage
115 - 230 V
12V Rail Power
The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds.
648 W;3.6 W
3.3V Rail Power
100 W
5V Rail Power
100 W
5VSB Rail Power
15 W
Max 12V Current
54 A;0.3 A
Max 3.3V Current
20 A
Max 5V Current
20 A
Max 5VSB Current
3 A
Motherboard Power Connector
18+10 pin ATX
SATA Power Connectors
3
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over current/Over power/Over voltage/Short circuit/Under voltage
Total Power Output
650 W
80 PLUS Rating
80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor
80 PLUS Gold
Pci Express Power Connectors 8 Pin
6
Cooling
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
120 mm
Fan Count
1 fan(s)
Compatibility
Supported Motherboard Form Factors
ATX
Physical
Depth
150 mm
Height
87 mm
Width
140 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
ATX
Colour
Black
Additional
MTBF
Mean Time Between Failures . statistical lifespan estimate in hours.
100000 h
Warranty
24
SKU
1439919
EAN
5903018666167
