Power Supply, ENDORFY, SUPREMO FM6, 850 Watts, Efficiency 80 PLUS GOLD, MTBF 100000 hours, EY7A012
€149.54
€123.59 / excl. VAT

Power Supply, ENDORFY, SUPREMO FM6, 850 Watts, Efficiency 80 PLUS GOLD, MTBF 100000 hours, EY7A012

MPN: EY7A012 Brand: ENDORFY
Cable Management: Fully-Modular
€149.54 / incl. VAT
€123.59 / excl. VAT
In 2 Business Days
7 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions? Expert help just one click away Contact Us

Product Description

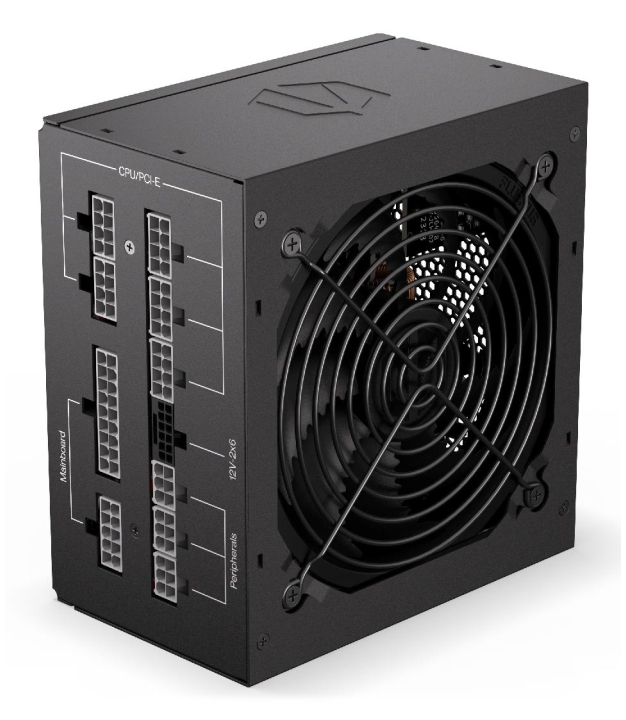

Supremo FM6 850 W is a fully modular modern ATX 3.1-compliant power supply unit, providing stable operation and supporting PCIe 5.1 GPUs. 80 PLUS® Gold certificate confirms its high efficiency, while a Fluctus fan guarantees quiet work. Thanks to the Japanese capacitors and a 10-year warranty, it’s a reliable solution for avid gamers and professionals alike.

Supremo FM6 850 W
Supremo FM6 850 W is a modular ATX 3.1 PSU for demanding users that supports PCIe 5.1 graphics cards. It boasts high power efficiency confirmed by an 80 PLUS® Gold certificate. The power supply’s design utilizes only the Japanese capacitors that guarantee its long service life.

The quiet Fluctus 120 mm fan and optimized component placement ensure low temperatures with almost noiseless operation. Additionally, the modular cables make it easier to keep the surrounding space in order. The PSU also has a security package that protects it from overloading and power surges. Its quality is additionally confirmed by a 10-year warranty.

Ready for latest ATX 3.1 standards
Supremo FM6 850 W is a power supply unit compliant with the ATX 3.1 standard. Its major advantages include even better performance, stability, and resistance to momentary power spikes than previous ATX standards. The set includes the 12V-2x6 cable fully compatible with PCIe 5.1 cards. A traditional PCI-E 6+2 PIN splitter is also included to handle GPUs with classic power supply systems.

80 PLUS® Gold – supreme performance and reliability
The 80 PLUS® Gold certificate confirms the high efficiency of the Supremo FM6 850 W power supply unit. Thanks to its excellent quality and refined design, the unit is characterized by low-noise and low-temperature operation, resulting in its extended service life. 

Silence first
Supremo FM6 850 W has been designed with maximum user comfort in mind. Thanks to the optimized component setup streamlining the air flow and a high-performance cooling system, the PSU runs exceptionally quietly and retains low temperature even under full load.

Premium class capacitors made in Japan
All capacitors installed in the Supremo FM6 850 W power supply unit are reliable, premium-class components made in Japan. They retain their operating parameters even at high temperatures (105 °C), enabling them to perform faultlessly and stably for years to come, even under extremely demanding operating conditions. 

Specifications

General
Model Name SUPREMO FM6
Certifications CB/CCC/CE/Federal Communications Commission (FCC)/RoHS/UKCA
Power
Input Frequency 50/60 Hz
Input Voltage 100 - 240 V
12V Rail Power The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds. 840 W;3.6 W
3.3V Rail Power 66 W
5V Rail Power 100 W
5VSB Rail Power 15 W
EPS 4+4-pin Connector Yes
Input Current 13 - 6.5 A
Max 12V Current 70 A;0.3 A
Max 3.3V Current 20 A
Max 5V Current 20 A
Max 5VSB Current 3 A
Motherboard Power Connector 24-pin ATX
SATA Power Connectors 8
PCIe 12+4-pin Connectors 1
PCIe 6+2-pin Connectors 3
Molex Connectors 1
PFC Type Active PFC (Power Factor Correction) reduces power waste; Passive is older and less efficient. Active
Protection Features OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits. Over current/Over power/Over voltage/Short circuit/Surge & inrush protection (SIP)/Under temperature/Under voltage
Total Power Output 850 W
80 PLUS Rating 80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor 80 PLUS Gold
Cooling
Fan Bearing Type FDB/Fluid: quieter, longer life. Ball: durable in any orientation. Sleeve: budget. FDB
Cooling Type Active
Fan Size Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation. 120 mm
Fan Location Top
Fan Count 1 fan(s)
Fan Stop (0 RPM mode) Fan turns off completely at low load for silent operation. No
Fan Speed 1260 - 1540 RPM
Features
RGB Lighting No
LED Indicators No
Compatibility
ATX Standard 3.1
Physical
Weight 1.460000
Depth 150 mm
Height 87 mm
Width 140 mm
PSU Form Factor ATX: standard. SFX: compact for small form-factor builds. ATX
Colour Black
SATA Power Cable Length 560 mm
Case Or Master Carton Dimensions 600 x 235 x 290 mm
Case Or Master Carton Weight 17000 kg
Additional
MTBF Mean Time Between Failures . statistical lifespan estimate in hours. 100000 h
Country of Origin China
Warranty 24;10 year(s)
SKU 1439921
EAN 5903018667959
