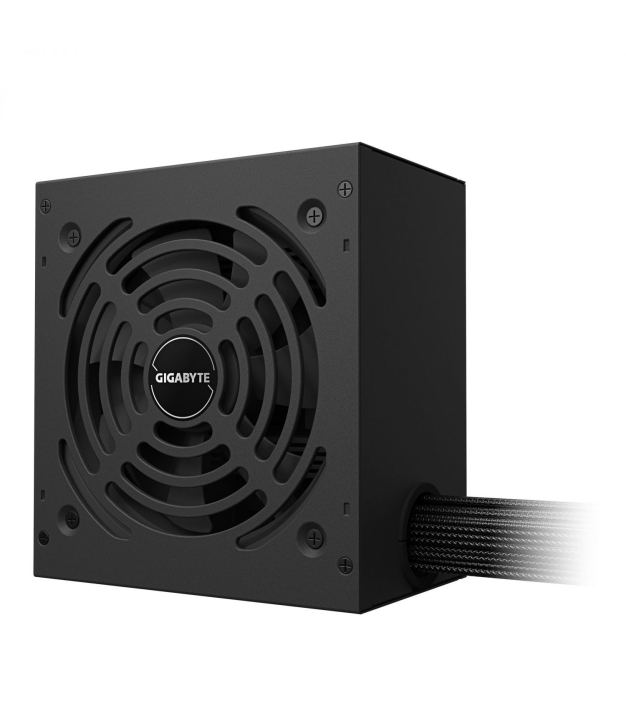

GIGABYTE P650G PCIE 5.1 Power Supply - PCIe 5.1, 80 PLUS Silver, 120mm Fan, ATX 3.1 compatible, EU Plug
MPN:
GP-P650G PG5
Brand:
GIGABYTE
Cable Management:
Non-Modular
€70.74
/ incl. VAT
€58.46
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
30 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
Specifications
General
Model Name
GP-P650G PG5
Maximum Input Current 110v
10 A
Maximum Input Current 220v
6 A
Power
Input Frequency
50/60 Hz
Input Voltage
100 - 240 V
12V Rail Power
The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds.
650 W;3.6 W
3.3V Rail Power
90 W
5V Rail Power
650 W
5VSB Rail Power
15 W
Input Current
10 - 6 A
Max 12V Current
54.2 A;0.3 A
Max 3.3V Current
18 A
Max 5V Current
18 A
Max 5VSB Current
18 A
Motherboard Power Connector
20+4 pin ATX
SATA Power Connectors
6
PCIe 6+2-pin Connectors
2
Molex Connectors
3
PFC Type
Active PFC (Power Factor Correction) reduces power waste; Passive is older and less efficient.
Active
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over power/Overcharge/Short circuit/Under voltage
Total Power Output
650 W
80 PLUS Rating
80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor
80 PLUS Gold
CPU 4+4-pin Connector
Yes
ATX 20+4-pin Connector
Yes
Power Good Signal Delay Range
100 - 150 ms
Processor
Cpu P4 Connector 4 Pin
1
Cpu Power Cable Length
600 mm
Storage
Floppy Disk Drive Connector
Yes
Cooling
Fan Bearing Type
FDB/Fluid: quieter, longer life. Ball: durable in any orientation. Sleeve: budget.
HYB
Cooling Type
Active
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
120 mm
Fan Location
Top
Fan Count
1 fan(s)
Compatibility
ATX Standard
3.1
Physical
Weight
1.760000
Depth
150 mm
Height
86 mm
Width
140 mm
Motherboard Cable Length
600 mm
PCIe Cable Length
500 mm
Molex Cable Length
150 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
ATX
Colour
Black
SATA Power Cable Length
120/500 mm
Additional
MTBF
Mean Time Between Failures . statistical lifespan estimate in hours.
100000 h
Warranty
36;5 year(s)
SKU
1449222
EAN
4719331556785
