Special offer

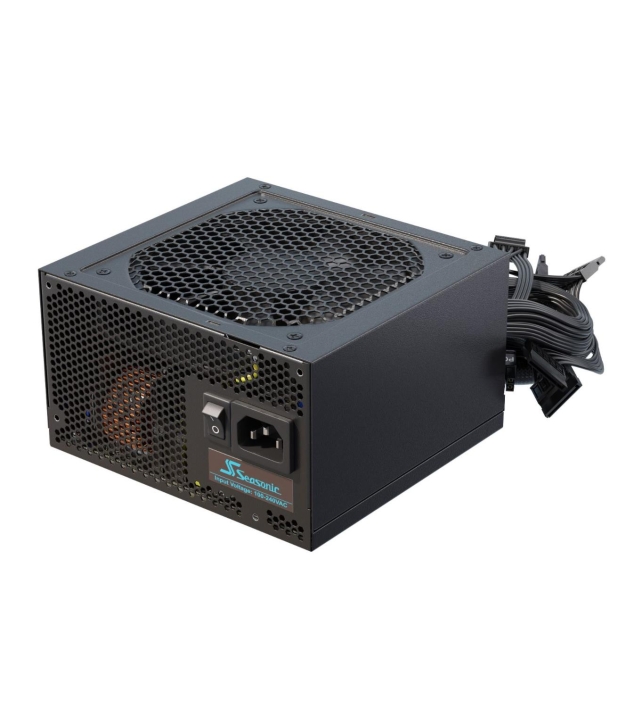

Power Supply, SEASONIC, ATX, PC, 100 - 240 V, 750 W, G12GC-750
MPN:
G12 GC-750
Brand:
SEASONIC
Cable Management:
Non-Modular
€97.65
/ incl. VAT
€80.70
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
100+ in Stock
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Specifications
General
Certifications
Energy Star, RoHS, WEEE, ErP Lot 6, REACH
CN Code
85044095
HS Code
84733020
Safety Features
cTUVus, TUV, CB, CCC, BSMI, CE, FCC
Power
Input Voltage
100 - 240 V
12V Rail Power
The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds.
744 W;3.6 W
3.3V Rail Power
100 W
5V Rail Power
100 W
5VSB Rail Power
12.5 W
Input Current
10 A
Max 12V Current
62 A;0.3 A
Max 3.3V Current
15 A
Max 5V Current
15 A
Max 5VSB Current
2.5 A
Motherboard Power Connector
20+4 pin ATX
SATA Power Connectors
6
Molex Connectors
3
PFC Type
Active PFC (Power Factor Correction) reduces power waste; Passive is older and less efficient.
Active
Total Power Output
750 W
80 PLUS Rating
80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor
80 PLUS Gold
PCIe Power Connector
Yes
Pci Express Power Connectors 6 Pin
2
Pci Express Power Connectors 8 Pin
2
Cooling
Fan Bearing Type
FDB/Fluid: quieter, longer life. Ball: durable in any orientation. Sleeve: budget.
Sleeve
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
120 mm
Features
Silent Mode
Yes
Compatibility
Supported Motherboard Form Factors
ATX
Physical
Depth
140 mm
Height
86 mm
Width
150 mm
PCIe Cable Length
700 mm
Molex Cable Length
690 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
ATX
Colour
Black
SATA Power Cable Length
690 mm
Additional
MTBF
Mean Time Between Failures . statistical lifespan estimate in hours.
100000 h
Warranty
60
SKU
1437002
EAN
4711173878537
