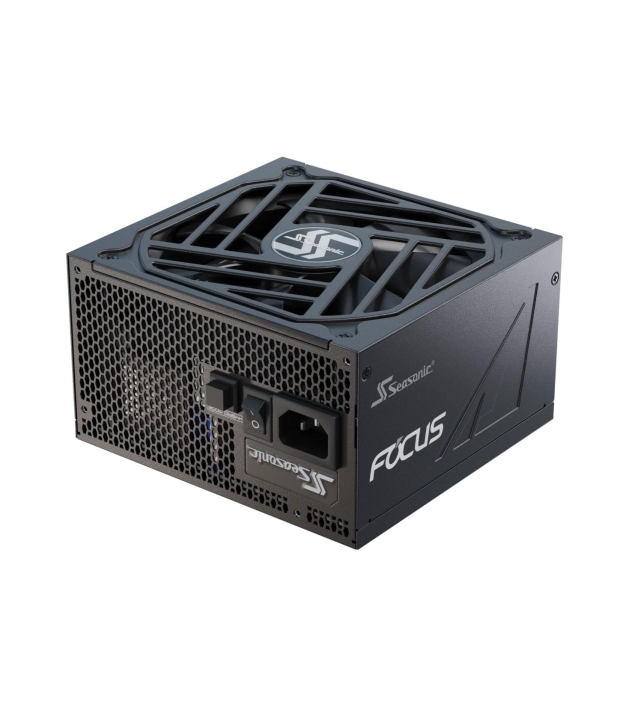

Power Supply, SEASONIC, FOCUS GX ATX 3.0, 1000 Watts, Efficiency 80 PLUS GOLD, MTBF 100000 hours, FOCUS-GX-1000-V4
MPN:
FOCUS-GX-1000-V4
Brand:
SEASONIC
Cable Management:
Fully-Modular
€283.07
/ incl. VAT
€233.94
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
FOCUS GX ATX 3.0
Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series was upgraded to comply with the ATX 3.0 and PCIe 5.0 standards. Offering a complete range of power supplies ranging from 750 W to 1000 W with in a 140 mm depth, these units will be the perfect allies to power the newest high power graphics cards and processors on the market.
Digital Hybrid Fan Control
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Digital Hybrid Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
Reduced noise without increase in temperature
Extended fan life due to the reduced number of fan rotations
Optimized heat dissipation at all times
Unsurpassed silent performance in Fanless Mode
Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
- 80 PLUS® GOLD
- Fully Modular
- ATX 3.0 & PCIe 5.0
Specifications
General
Model Name
FOCUS GX ATX 3.0
CN Code
85044095
Certifications
CB/CE/cTUVus/EAC/REACH/RoHS/WEEE
Maximum Input Current 110v
13 A
Maximum Input Current 220v
6.5 A
Safety Features
cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Power
Input Frequency
50/60 Hz
Input Voltage
100 - 240 V
12V Rail Power
The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds.
996 W;3.6 W
3.3V Rail Power
125 W
5V Rail Power
125 W
5VSB Rail Power
15 W
Input Current
13 - 6.5 A
Max 12V Current
83 A;0.3 A
Max 3.3V Current
25 A
Max 5V Current
25 A
Max 5VSB Current
3 A
Motherboard Power Connector
20+4 pin ATX
SATA Power Connectors
2
PCIe 12+4-pin Connectors
1
PCIe 6+2-pin Connectors
3
Molex Connectors
3
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Total Power Output
1000 W
80 PLUS Rating
80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor
80 PLUS Gold
CPU 4+4-pin Connector
Yes
Processor
Cpu Power Cable Length
700 mm
Cooling
Fan Bearing Type
FDB/Fluid: quieter, longer life. Ball: durable in any orientation. Sleeve: budget.
FDB
Cooling Type
Active
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
135 mm
Fan Count
1 fan(s)
Physical
Depth
140 mm
Height
86 mm
Width
150 mm
Motherboard Cable Length
610 mm
Molex Cable Length
690 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
ATX
Colour
Black
SATA Power Cable Length
550 mm
Additional
MTBF
Mean Time Between Failures . statistical lifespan estimate in hours.
100000 h
Sustainability Certs
ENERGY STAR
Warranty
120;10 year(s)
SKU
1427537
EAN
4711173878421
