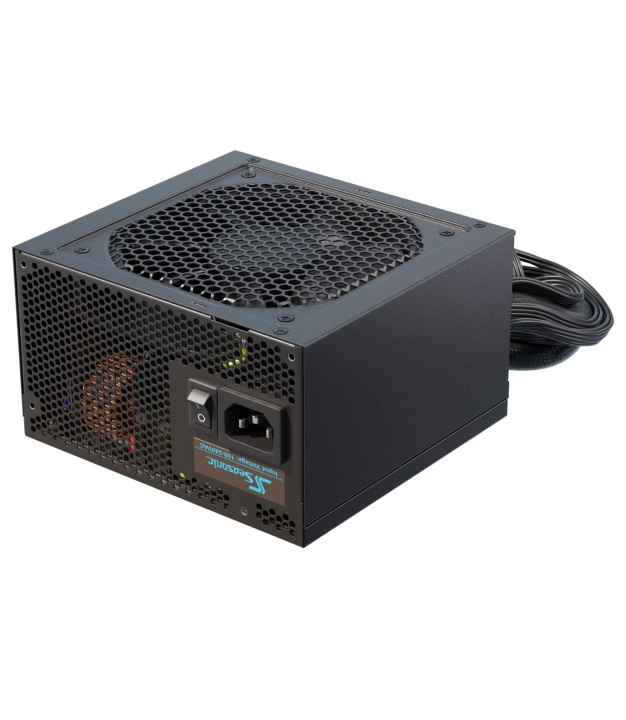

Power Supply, SEASONIC, G12 GM, 850 Watts, Efficiency 80 PLUS GOLD, MTBF 100000 hours, G12GM-850
MPN:
G12 GM-850
Brand:
SEASONIC
Cable Management:
Semi-Modular
€161.46
/ incl. VAT
€133.44
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
The G12 GM Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GM-Series achieves 80 PLUS® Gold standard of providing at least 87 %, 90 % and 87 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GM series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the G12 GM units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).
80 PLUS GOLD
The G12 GC achieves 80 PLUS Gold certification with its 90 % efficiency at 50 % system load.
S2FC - SMART AND SILENT FAN CONTROL
The intelligent thermal circuit feature is designed to find the optimal balance between the necessity to cool the components and the need to run the power supply in the most silent manner possible.
- ATX 12 V
- Semi-modular cables
- 80 PLUS Gold Certified
- 140 mm (L) x 150 mm (W) x 86 mm (H)
Specifications
General
Model Name
G12 GM
Certifications
cTUVus, TUV, CB, CCC, BSMI, CE, FCC, RoHS, WEEE, ErP Lot 6, REACH
Power
Input Voltage
100 - 240 V
12V Rail Power
The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds.
840 W;3.6 W
3.3V Rail Power
100 W
5V Rail Power
100 W
5VSB Rail Power
12.5 W
Input Current
10 A
Max 12V Current
70 A;0.3 A
Max 3.3V Current
20 A
Max 5V Current
20 A
Max 5VSB Current
2.5 A
Motherboard Power Connector
20+4 pin ATX
SATA Power Connectors
6
PCIe 6+2-pin Connectors
2
Molex Connectors
3
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over current/Over voltage/Short circuit
Total Power Output
850 W
80 PLUS Rating
80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor
80 PLUS Gold
CPU 4+4-pin Connector
Yes
Processor
Cpu Power Cable Length
600 mm
Cooling
Fan Bearing Type
FDB/Fluid: quieter, longer life. Ball: durable in any orientation. Sleeve: budget.
Sleeve
Cooling Type
Active
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
120 mm
Fan Count
1 fan(s)
Features
Cable Tie S Included
Yes
Physical
Depth
140 mm
Height
86 mm
Width
150 mm
Motherboard Cable Length
550 mm
PCIe Cable Length
700 mm
Molex Cable Length
690 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
ATX
Colour
Black
Additional
MTBF
Mean Time Between Failures . statistical lifespan estimate in hours.
100000 h
Warranty
60
SKU
1435278
EAN
4711173878513
