Special offer

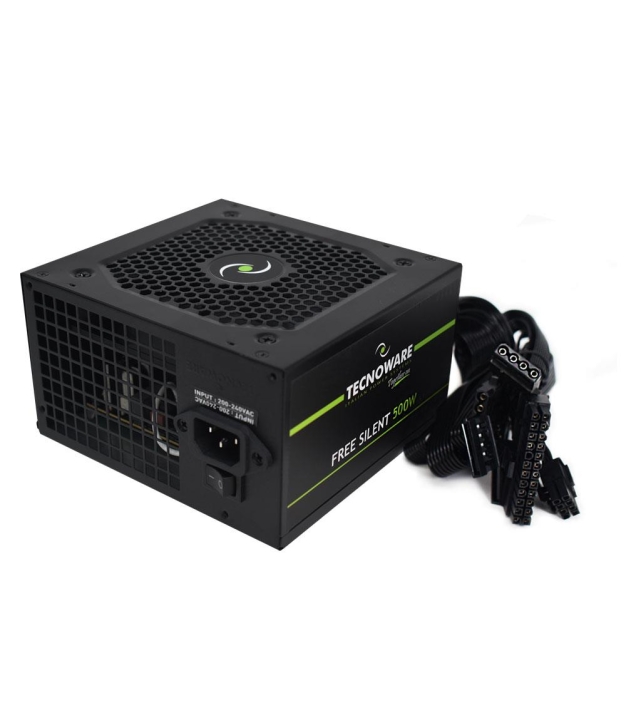

Power Supply, TECNOWARE, FREE SILENT 500W, ATX, PC, 180 - 264 V, 500 W, FAL506FS12B
MPN:
FAL506FS12B
Brand:
TECNOWARE
€29.11
/ incl. VAT
€24.06
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
30 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
- Inner power supply for Computer
- Input voltage 230 Vac 50Hz
- 12 cm silent cooling fan
- Fan speed temperature control
- Overvoltage protection
- Overload protection
- Short-circuit protection
- High MTBF ( >100.000 hours)
- High reliability
- High efficiency
Specifications
General
Model Name
FREE SILENT 500W
Certifications
CE (2014/35/UE; EMC 2014/30/UE)
Certifications
RoHS
Efficiency
86 %
Operating Altitude
0 - 3000 m
Operating Humidity
0 - 95 %
Power
Input Frequency
47 - 63 Hz
Input Voltage
180 - 264 V
Input Current
5 A
Max 12V Current
28 A;0.8 A
Max 3.3V Current
22 A
Max 5V Current
22 A
Max 5VSB Current
2.5 A
Motherboard Power Connector
20+4 pin ATX
SATA Power Connectors
2
Molex Connectors
2
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over voltage/Overload/Short circuit
Total Power Output
500 W
CPU 4+4-pin Connector
Yes
ATX 20+4-pin Connector
Yes
Floppy Drive Power Connector
1
Storage
Floppy Disk Drive Connector
Yes
Cooling
Cooling Type
Active
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
120 mm
Fan Location
Top
Fan Count
1 fan(s)
Compatibility
ATX Standard
2.01
Physical
Weight
1.000000
Depth
140 mm
Height
85 mm
Width
150 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
ATX
Colour
Grey
Additional
Warranty
24
SKU
1290622
EAN
8026475175601
