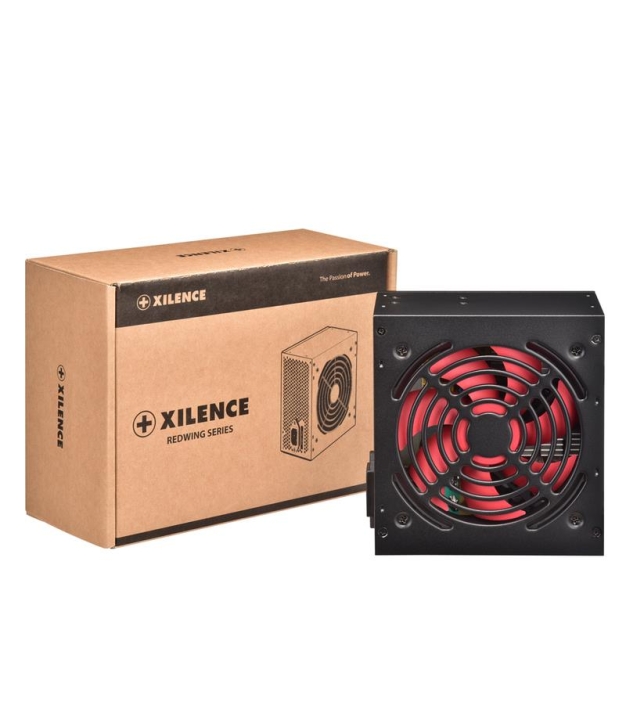

Power Supply, XILENCE, 700 Watts, PFC Active, XN054
MPN:
XN054
Brand:
XILENCE
Cable Management:
Non-Modular
€72.13
/ incl. VAT
€59.61
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
The latest generation of Redwing power supplies combines an exciting design with modern technology and top quality. In the current revision, the power supply series has been completely revised and adapted to the demands of today's computer systems. The result not only convinces through its efficient technic, but with its modern design and high stability. The connections have been coordinated to current systems and four integrated safety circuits always ensure safe operation.
Specifications
General
CN Code
85044095
Certifications
RoHS/WEEE
Power
Input Frequency
50 Hz
Input Voltage
200 - 240 V
12V Rail Power
The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds.
648 W
3.3V Rail Power
120 W
5V Rail Power
120 W
Input Current
8 A
Max 12V Current
54 A;0.5 A
Max 3.3V Current
24 A
Max 5V Current
18 A
Max 5VSB Current
2.5 A
Motherboard Power Connector
20+4 pin ATX
SATA Power Connectors
6
PCIe 6+2-pin Connectors
1
Molex Connectors
2
PFC Type
Active PFC (Power Factor Correction) reduces power waste; Passive is older and less efficient.
Passive
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Total Power Output
700 W
ATX 20+4-pin Connector
Yes
PCIe Power Connector
Yes
Pci Express Power Connectors 6 Pin
1
Processor
Cpu P4 Connector 4 Pin
1
Cpu Power Cable Length
550 mm
Cooling
Fan Bearing Type
FDB/Fluid: quieter, longer life. Ball: durable in any orientation. Sleeve: budget.
FDB
Cooling Type
Active
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
120 mm
Fan Location
Top
Fan Count
1 fan(s)
Compatibility
ATX Standard
2.31
Physical
Motherboard Cable Length
450 mm
PCIe Cable Length
500 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
ATX
Colour
Black
Additional
Warranty
24
SKU
1218701
EAN
4044953501234
