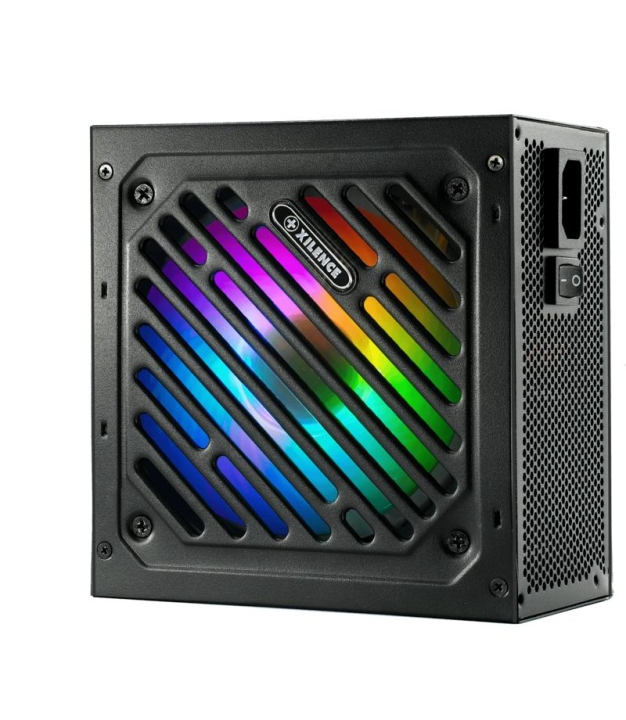

Power Supply, XILENCE, 750 Watts, Efficiency 80 PLUS GOLD, PFC Active, XN335
MPN:
XN335
Brand:
XILENCE
Cable Management:
Non-Modular
€102.22
/ incl. VAT
€84.48
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
3 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
XN335 | XP750R12.ARGB
The Gaming GOLD Series is a PC power supply series with a fixed cable harness, as well as a 750W ARGB variant. The noble design with its black powder coating, the 120mm silent, black or transparent fan and the fan grille emphasizes the valuable character of this series.
The maximum voltage stability and the six integrated safety circuits ensure safe operation even in heated workflows or gaming sessions. The power supplies are suitable for the highest demands in gaming, multi-media application and streaming areas and have low power consumption during these intensive phases. The power supplies achieve the 80+ GOLD requirements.
- Whisper-Quiet Cooling: Large 120mm Fan*
- Excellent Airflow Design for Improved Heat Dissipation
- With the Following Safety Equipment:
- OVP (Overvoltage Protection)
- UVP (Undervoltage Protection)
- SCP (Short Circuit Protection)
- OLP (Overload Protection)
- OTP (Over Temperature Protection)
- OCP (Overcurrent Protection)
- Low Standby Power Consumption
Specifications
General
Model Name
XN335 | XP750R12.ARGB
Certifications
80PLUS certification
Power
Input Frequency
50 Hz
Input Voltage
200 - 240 V
12V Rail Power
The 12V rail powers the CPU and GPU; it is the most important rating for gaming builds.
3.6 W
3.3V Rail Power
66 W
5V Rail Power
100 W
5VSB Rail Power
15 W
Input Current
6.3 A
Motherboard Power Connector
20+4 pin ATX
SATA Power Connectors
6
PCIe 6+2-pin Connectors
3
PFC Type
Active PFC (Power Factor Correction) reduces power waste; Passive is older and less efficient.
Active
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Over power/Over voltage/Overheating/Short circuit/Under voltage
Total Power Output
750 W
80 PLUS Rating
80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor
80 PLUS Gold
CPU 4+4-pin Connector
Yes
ATX 20+4-pin Connector
Yes
PCIe Power Connector
Yes
Processor
Cpu P4 Connector 4 Pin
2
Cooling
Fan Bearing Type
FDB/Fluid: quieter, longer life. Ball: durable in any orientation. Sleeve: budget.
HDB
Cooling Type
Active
Fan Size
Larger fans (140 mm vs 120 mm) move more air at lower RPM . quieter operation.
120 mm
Fan Location
Top
Fan Count
1 fan(s)
Compatibility
ATX Standard
2.52
Supported Motherboard Form Factors
ATX
Physical
Weight
2.300000
Depth
247 mm
Height
98 mm
Width
198 mm
Motherboard Cable Length
55 mm
PSU Form Factor
ATX: standard. SFX: compact for small form-factor builds.
ATX
Colour
Black
Additional
Warranty
24
SKU
1394058
EAN
4044953503344
