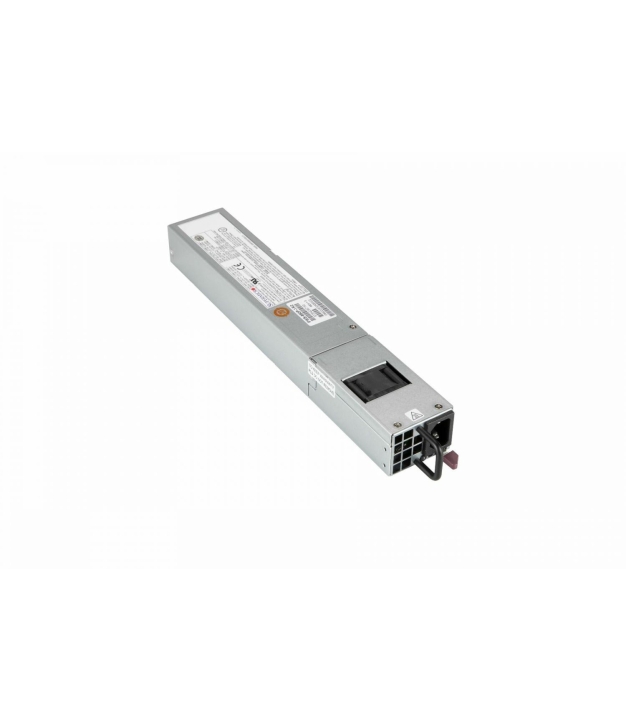

SERVER ACC PSU 860W REDUNDANT/PWS-860P-1R2 SUPERMICRO
MPN:
PWS-860P-1R2
Brand:
SUPERMICRO
PSU Form Factor:
1U
Total Power Output:
860 W
€246.50
/ incl. VAT
€203.72
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
4 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
The Supermicro PWS-860P-1R2 is an 80 Plus Platinum level redundant power supply capable of continuously supplying 800W/860W output power at 94% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge output to interface with a 2x25 card edge connector. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 250,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.
- Designed for Supermicro Server
- Redundant PSU with PMBus 1.2 Support for Remote Management
- 80 Plus Platinum Efficiency
- Supermicro Certified
Specifications
General
Model
PWS-860P-1R2
Model Name
PWS-860P-1R2
Power
Input Frequency
50/60 Hz
Input Voltage
100 - 240 V
Efficiency
94 %
80 PLUS Rating
80 PLUS efficiency tiers measure how much input wall power is wasted as heat at typical loads. Bronze >=82 percent, Gold >=87 percent, Platinum >=90 percent, Titanium >=94 percent. Higher tiers run cooler and cost less to operate but the PSU itself is mor
80 PLUS Platinum
Features
LED Indicators
Yes
Physical
Depth
40.25 mm
Height
322 mm
Width
54.5 mm
Additional
MTBF
Mean Time Between Failures . statistical lifespan estimate in hours.
250000 h
Certifications
REACH/RoHS
Warranty
12
SKU
1365416
