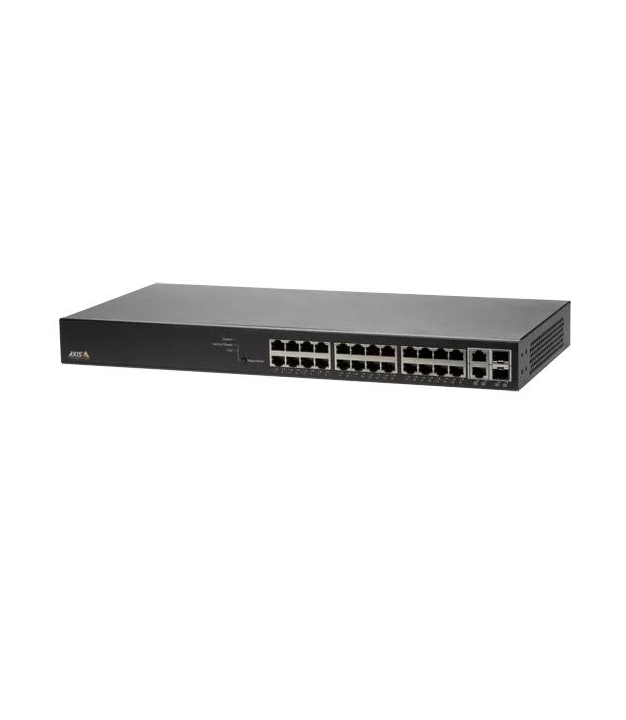

Switch, AXIS, Rack 1U, 24x10Base-T / 100Base-TX / 1000Base-T, 2x10/100/1000BASE-T/SFP combo, 2xSFP, 24xRJ45, PoE ports 24, 01192-002

MPN: 01192-002 Brand: AXIS

€1,876.71 / incl. VAT

€1,551.00 / excl. VAT

This product is currently out of stock. Subscribe to back in stock notification.

Short description

Return Policy

Delivery Information

Have questions? Expert help just one click away Contact Us

Product Description

AXIS T8524 PoE+ Network Switch is an easy to install 24-port managed Gigabit switch - a perfect complement to Axis’ recorders to further simplify setup and installation of surveillance systems. AXIS T8524 comes with an integrated DHCP server for automatic assignment of IP addresses and discovery of connected Axis devices. The intuitive administrator interface offers a graphic topology for easy overview of all devices in the system with information about connected devices and status. The high PoE power output allows for connection of up to 24 PoE cameras.

2 SFP/RJ45 Combination Ports; 30 W PoE per port, total 370 W; Gigabit switch; Intuitive graphic topology for system overview

Specifications

General

Warranty 60

Arp Inspection Yes

HS Code 85176990

Igmp Snooping Yes

Jumbo Frames 9216

Jumbo Frames Support Yes

Operating Humidity 10 - 90 %

QoS Support Quality of Service prioritises camera stream traffic on the network. Yes

Ssh Ssl Support Yes

Rubber Feet Yes

Icmp Attack Prevention Yes

Physical

Weight 3.200000

Depth 211 mm

Height 44 mm

Width 442 mm

Colour Black

Rack Mount Kit Yes

Rack Mounting Yes

Additional

SKU 1256348

EAN 7331021061866

Power

Input Frequency 50 - 60 Hz

Input Voltage 100 - 240 V

Power Over Ethernet Poe Power Per Port 30 W

Surge Protection Voltage 6 kV

Features

Access Control List Acl Yes

Bpdu Filtering Protection Yes

Surge Protection Yes

KVM Type KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort. Managed

Virtual Lan Features Private VLAN

Battery & Security

Password Protection Yes

Security Protocols HTTPS/SNMP/SNMPv3

Networking

Basic Switching Rj 45 Ethernet Ports Quantity 24

Basic Switching Rj 45 Ethernet Ports Type Gigabit Ethernet (10/100/1000)

Combo Sfp Ports Quantity 2

Dhcp Features DHCP server/DHCP snooping

Mac Address Table 8000 entries

Networking Standards IEEE 802.1x/IEEE 802.3at

Power Over Ethernet Plus Poe Ports Quantity 24

Power Over Ethernet Poe Yes

Switching Capacity 52 Gbit/s

Throughput 38.7 Mpps

Total Power Over Ethernet Poe Budget 370 W

Vlan Support Yes
