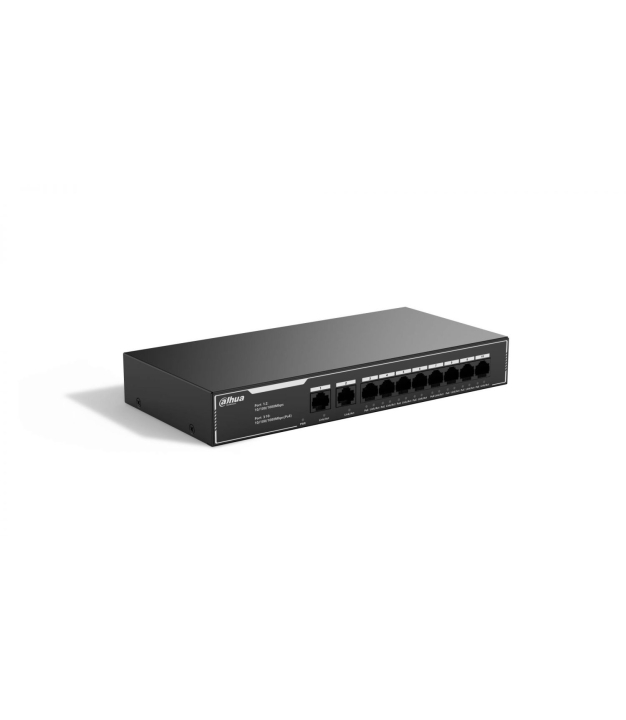

Dahua Technology PoE SG1010LP Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
MPN:
SG1010LP
Brand:
DAHUA
€76.38
/ incl. VAT
€63.12
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
8 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
DH-SG1010LP Unmanaged All-gigabit Switch is highly efficient, coming with 8 × 10/100/1000 Mbps PoE ports. It consumes 65 W at most, and has 8 × 10/100/1000 Mbps Ethernet ports and 2 × 10/100/1000 Mbps uplink Ethernet ports. Hassle-free, it does not require any configuration due to its plug-and-play design. The switch is a reliable, cost-effective option for small and medium-sized scenes
Eight-pin PoE
Supports 8-pin simultaneous power supply (1/2/4/5 positive, 3/6/7/8 negative). Signal lines and idle lines supply power at the same time. Compatibility with IPC is enhanced. Cable loss is reduced. Loading capacity is increased.
Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is powered on.
All-Gigabit Ports
Designed with large buffer memory and all-Gigabit ports, enabling high-definition access of large stream.
Wide Operating Temperature
Supports working at ambient temperatures of -10 °C to +55 °C, and has built-in professional mine-proof circuits, effectively reducing the impact of thunderstorms on network systems and improving system robustness, adapted to harsh environments.
Eight-pin PoE
Supports 8-pin simultaneous power supply (1/2/4/5 positive, 3/6/7/8 negative). Signal lines and idle lines supply power at the same time. Compatibility with IPC is enhanced. Cable loss is reduced. Loading capacity is increased.
Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is powered on.
All-Gigabit Ports
Designed with large buffer memory and all-Gigabit ports, enabling high-definition access of large stream.
Wide Operating Temperature
Supports working at ambient temperatures of -10 °C to +55 °C, and has built-in professional mine-proof circuits, effectively reducing the impact of thunderstorms on network systems and improving system robustness, adapted to harsh environments.
Specifications
General
Warranty
36
Model Name
10-Port Economical Gigabit PoE Switch with 8-Port PoE
A 10g Supp
No
Certifications
CE
Forwarding Rate
14.88 Mpps
Input Current
1.5 A
Jumbo Frames
9216
Jumbo Frames Support
Yes
Model
SG1010LP
Operating Humidity
5 - 95 %
Packet Buffer Memory
2 MB
Physical
Weight
0.800000
Depth
243 mm
Height
35 mm
Width
118 mm
Colour
Black
Rack Mounting
No
Connectivity
Gigabit Ethernet Ports Quantity
10
Uplink Ports Quantity
2
Additional
SKU
1449925
EAN
6923172572073
Power
Input Frequency
50/60 Hz
Input Voltage
100 - 240 V
Max Power Draw
65 W
Power Source
DC/PoE
Features
Switch Layer
L2
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Unmanaged
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
10
Basic Switching Rj 45 Ethernet Ports Type
Gigabit Ethernet (10/100/1000)
Mac Address Table
2000 entries
Networking Standards
IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x
Power Over Ethernet Poe
Yes
Power Over Ethernet Poe Ports Quantity
8
Switching Capacity
20 Gbit/s
Total Power Over Ethernet Poe Budget
65 W
