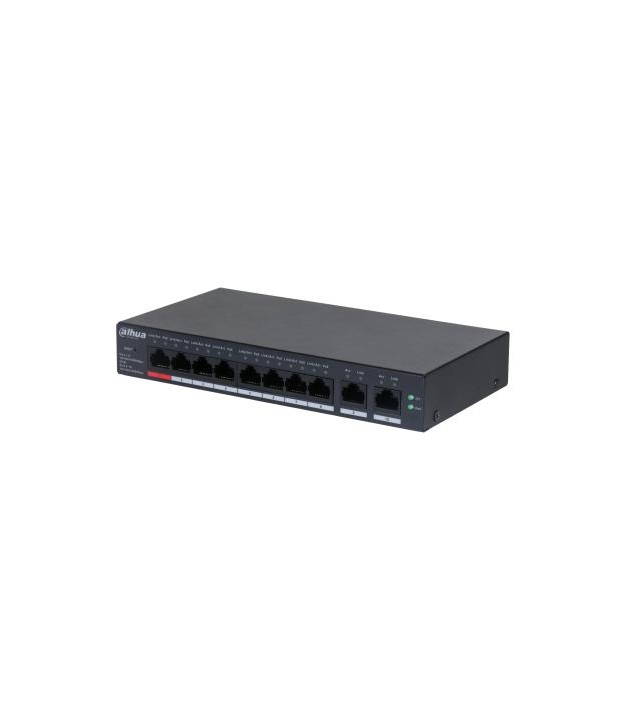

Dahua Technology DH-CS4010-8GT-110 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
MPN:
DH-CS4010-8GT-110
Brand:
DAHUA
€100.13
/ incl. VAT
€82.75
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
26 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
- Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab standards
- Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards
- Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE
- A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof
Specifications
General
Warranty
36
Model Name
CS4010-8GT-110
A 10g Supp
No
Cloud Managed
Yes
CN Code
85176200
Certifications
CE
Forwarding Rate
4.17 Mpps
Input Current
2.22 A
Jumbo Frames
15000
Jumbo Frames Support
Yes
Number Of Vlans
32
Operating Humidity
5 - 95 %
Packet Buffer Memory
0.5 MB
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Reset Button
Yes
Web Based Management
Yes
Physical
Weight
0.550000
Depth
106 mm
Height
30 mm
Width
190 mm
Colour
Black
Rack Mounting
No
Connectivity
Copper Ethernet Cabling Technology
1000BASE-T/100BASE-TX/10BASE-T
Gigabit Ethernet Ports Quantity
10
Display
LED Indicators
Yes
Additional
SKU
1405023
EAN
6923172571151
Power
Dc Input Voltage
54 V
Max Power Draw
110 W
Power Source
DC/PoE
PSU Included
Yes
Redundant Power Supply Rps Support
Yes
Features
Flow Control Support
Yes
Switch Layer
L2
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Managed
Virtual Lan Features
Port-based VLAN
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
10
Basic Switching Rj 45 Ethernet Ports Type
Gigabit Ethernet (10/100/1000)
Dhcp Features
DHCP client
Ethernet Data Rates
10, 100, 1000 Mbit/s
Mac Address Table
8000 entries
Networking Standards
IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x
Power Over Ethernet Poe
Yes
Power Over Ethernet Poe Ports Quantity
8
Spanning Tree Protocol
Yes
Switching Capacity
20 Gbit/s
Vlan Support
Yes
