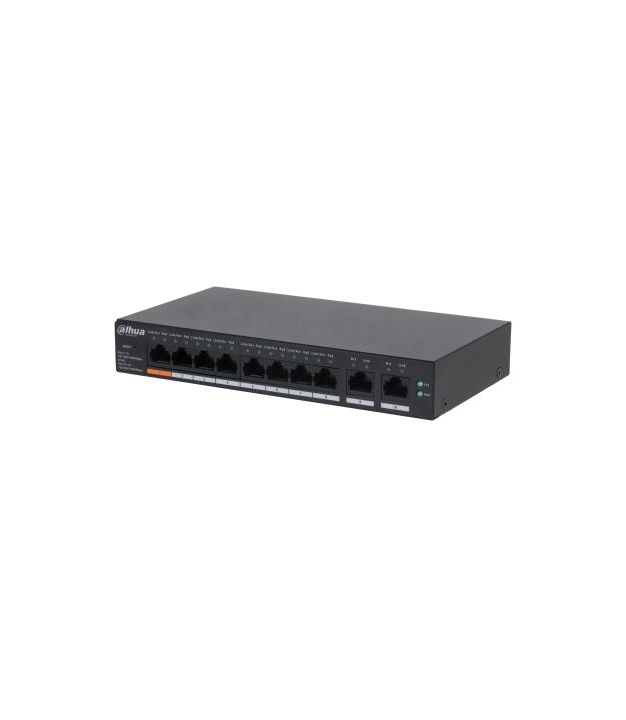

Switch, DAHUA, CS4010-8GT-60, Switch type Managed, Switch layer L2, Form factor Desktop/Wall-Mounting, 10xRJ-45 ports, RJ-45 Ports Type Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE) Yes, 8xPower over Ethernet (PoE) ports quantity, Total Power
MPN:
DH-CS4010-8GT-60
Brand:
DAHUA
€80.50
/ incl. VAT
€66.53
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
5 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Highly intuitive, the Smart Managed Switch can manage local networks. With the DoLynk Care platform, it can also perform cloud management. The switch performs operation and maintenance using
topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in
temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series Smart
Managed Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W. Also, link aggregation and STP are available on select models to ensure
the network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels./
topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in
temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series Smart
Managed Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W. Also, link aggregation and STP are available on select models to ensure
the network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels./
Highly intuitive, the Smart Managed Switch can manage local networks. With the DoLynk Care platform, it can also perform cloud management. The switch performs operation and maintenance using
topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in
temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series Smart
Managed Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W. Also, link aggregation and STP are available on select models to ensure
the network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels.
- Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards
- Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE
- A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof
Specifications
General
Warranty
36
Model Name
CS4010-8GT-60
A 10g Supp
No
Certifications
CE
Cloud Managed
Yes
Forwarding Rate
14.88 Mpps
Jumbo Frames
15360
Jumbo Frames Support
Yes
Number Of Vlans
32
Operating Humidity
5 - 95 %
Reset Button
Yes
Web Based Management
Yes
Physical
Weight
0.550000
Depth
190 mm
Form Factor
Desktop/Wall-Mounting
Height
30 mm
Width
106 mm
Colour
Black
Wall Mountable
Yes
Additional
SKU
1462929
EAN
6937552480339
Features
Flow Control Support
Yes
Switch Layer
L2
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Managed
Virtual Lan Features
Port-based VLAN
Power
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
65 W
Power Source
DC/PoE
PSU Included
Yes
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
10
Basic Switching Rj 45 Ethernet Ports Type
Gigabit Ethernet (10/100/1000)
Dhcp Features
DHCP client
Mac Address Table
8000 entries
Networking Standards
IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x
Power Over Ethernet Poe
Yes
Power Over Ethernet Poe Ports Quantity
8
Spanning Tree Protocol
Yes
Switching Capacity
20 Gbit/s
Total Power Over Ethernet Poe Budget
60 W
Vlan Support
Yes
