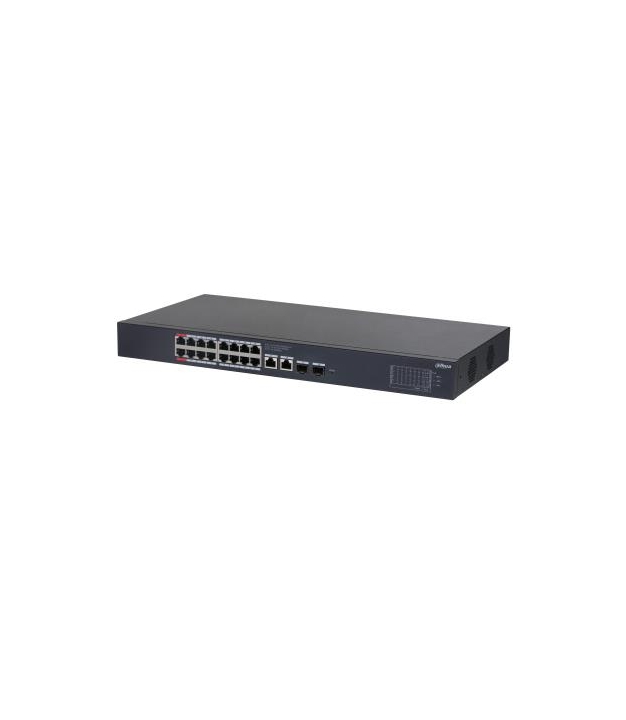

Dahua Technology CS4220-16GT-240 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
MPN:
CS4220-16GT-240
Brand:
DAHUA
€215.65
/ incl. VAT
€178.22
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
14 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Highly intuitive, the Smart Managed Switch can manage local networks. With the DoLynk Care platform, it can also perform cloud management. The switch performs operation and maintenance using
topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in
temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series Smart
Managed Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W. Also, link aggregation and STP are available on select models to ensure
the network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels.
topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in
temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series Smart
Managed Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W. Also, link aggregation and STP are available on select models to ensure
the network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels.
Specifications
General
Warranty
36
A 10g Supp
No
Cloud Managed
Yes
Forwarding Rate
29.76 Mpps
Jumbo Frames
15360
Jumbo Frames Support
Yes
Number Of Vlans
32
Operating Humidity
5 - 95 %
Reset Button
Yes
Web Based Management
Yes
Physical
Weight
2.370000
Depth
220 mm
Height
44 mm
Width
440 mm
Colour
Black
Rack Mounting
Yes
Additional
SKU
1432589
EAN
6923172571205
Power
Input Frequency
47/63 Hz
Input Voltage
100 - 240 V
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
265 W
Power Source
AC/DC/PoE
PSU Included
Yes
Features
Flow Control Support
Yes
Loop Protection
Yes
Switch Layer
L2
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Managed
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
18
Basic Switching Rj 45 Ethernet Ports Type
Gigabit Ethernet (10/100/1000)
Dhcp Features
DHCP client
Mac Address Table
8000 entries
Networking Standards
IEEE 802.3/IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Power Over Ethernet Poe
Yes
Power Over Ethernet Poe Ports Quantity
16
Sfp Module Slots Quantity
2
Spanning Tree Protocol
Yes
Switching Capacity
40 Gbit/s
Total Power Over Ethernet Poe Budget
240 W
Vlan Support
Yes
