Switch, DAHUA, PFS3010-8ET-96-V2, Desktop/pedestal, PoE ports 8, 96 Watts, DH-PFS3010-8ET-96-V2
MPN:
DH-PFS3010-8ET-96-V2
Brand:
DAHUA
€78.99
/ incl. VAT
€65.28
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
8 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
System Overview

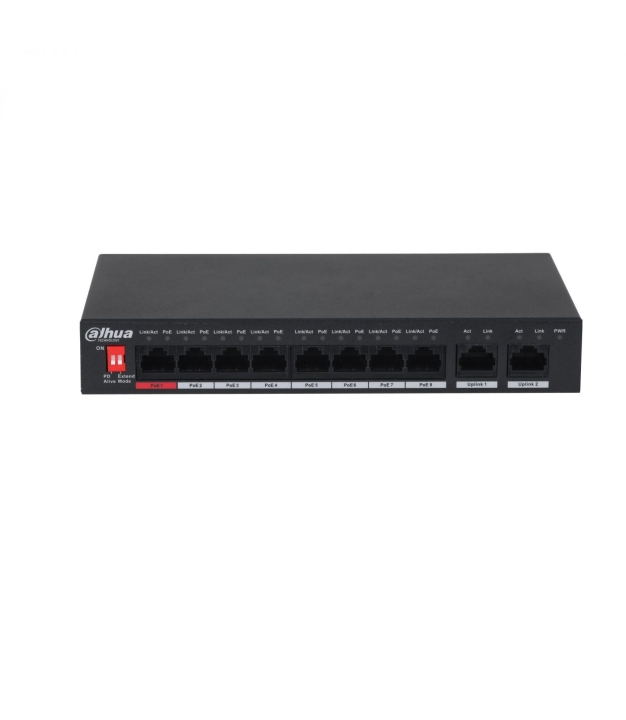

DH-PFS3010-8ET-96 is an unmanaged Desktop Switch with 8 × 10/100Mbps PoE Ports. It provides 8 × 10/100 Mbps Ethernet ports and 2 × 10/100/1000 Mbps uplink ports. The product is equipped with two types of transmission modes (Extend Mode On/Extend Mode Off). The red port supports the IEEE802.3bt and the Hi-PoE standards. The maximum power consumption is 90W. It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.
Intelligent PoE
Adopt PoE power consumption management strategy, and supply power to important ports first. When total power consumption exceeds the set threshold value of the system, power down the ports from large port number to small port number. Adopt smart detection to prevent outage. Supply power with ultra-wide power range, and adapt to IPC power consumption fluctuations in severe environment.
BT 90W
The red port supports the IEEE802.3bt and the Hi-PoE standards. The maximum power consumption is 90 W.
PoE Watchdog
Adopt the PoE watchdog function to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.
Long Distance PoE
Breaking the IEEE 100 m transmission limit, the device supports 250 m long distance PoE transmission with a more flexible networking.
8-pin Assignment PoE Power Supply
The Eight-PIN Ethernet port supports power supply, to enhance frontend and rear-end compatibility. Reduce cable loss and promote loading capacity.
Scene
The device is applicable for use in different scenarios, including home, office, server farm, and small mall.
DH-PFS3010-8ET-96 is an unmanaged Desktop Switch with 8 × 10/100Mbps PoE Ports. It provides 8 × 10/100 Mbps Ethernet ports and 2 × 10/100/1000 Mbps uplink ports. The product is equipped with two types of transmission modes (Extend Mode On/Extend Mode Off). The red port supports the IEEE802.3bt and the Hi-PoE standards. The maximum power consumption is 90W. It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.
Intelligent PoE
Adopt PoE power consumption management strategy, and supply power to important ports first. When total power consumption exceeds the set threshold value of the system, power down the ports from large port number to small port number. Adopt smart detection to prevent outage. Supply power with ultra-wide power range, and adapt to IPC power consumption fluctuations in severe environment.
BT 90W
The red port supports the IEEE802.3bt and the Hi-PoE standards. The maximum power consumption is 90 W.
PoE Watchdog
Adopt the PoE watchdog function to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.
Long Distance PoE
Breaking the IEEE 100 m transmission limit, the device supports 250 m long distance PoE transmission with a more flexible networking.
8-pin Assignment PoE Power Supply
The Eight-PIN Ethernet port supports power supply, to enhance frontend and rear-end compatibility. Reduce cable loss and promote loading capacity.
Scene
The device is applicable for use in different scenarios, including home, office, server farm, and small mall.
Specifications
General
Warranty
36
Model Name
PFS3010-8ET-96-V2
A 10g Supp
No
Forwarding Rate
4.17 Mpps
Operating Humidity
5 - 95 %
Operating Temperature Range
-10 - 55 °C
Packet Buffer Memory
4 MB
Physical
Weight
0.500000
Colour
Black
Net Weight
500 g
Connectivity
Fast Ethernet Copper Ports Quantity
8
Gigabit Ethernet Ports Quantity
2
Additional
SKU
1347332
EAN
6923172507556
Power
Dc Input Voltage
48 - 57 V
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
90 W
Power Source
DC
Features
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Unmanaged
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
10
Basic Switching Rj 45 Ethernet Ports Type
Gigabit Ethernet (10/100/1000)
Ethernet Data Rates
10, 100, 1000 Mbit/s
Mac Address Table
8000 entries
Networking Standards
IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3by/IEEE 802.3u/IEEE 802.3x
Power Over Ethernet Poe
Yes
Power Over Ethernet Poe Ports Quantity
8
Switching Capacity
5.6 Gbit/s
Total Power Over Ethernet Poe Budget
96 W
