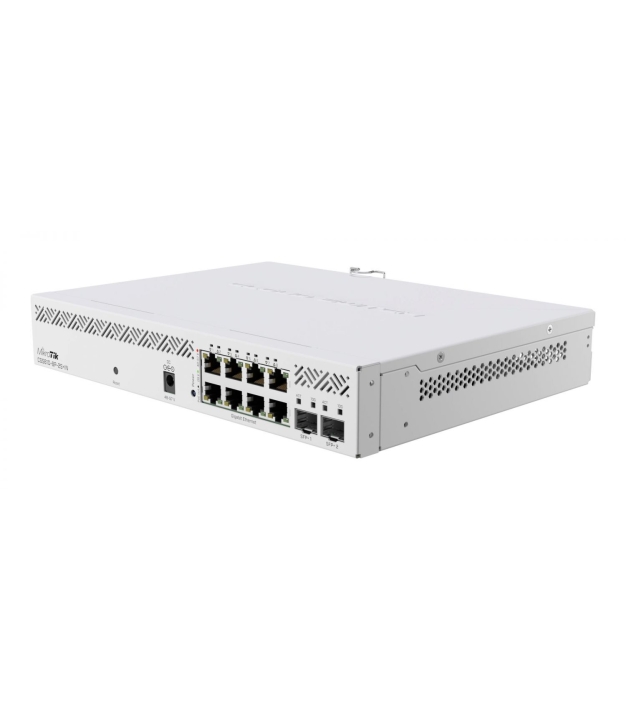

Switch, MIKROTIK, 8x10Base-T / 100Base-TX / 1000Base-T, 2xSFP+, CSS610-8P-2S+IN

MPN: CSS610-8P-2S+IN Brand: MikroTik
€291.27 / incl. VAT
€240.72 / excl. VAT
This product is currently out of stock. Subscribe to back in stock notification.
Short description
Return Policy
Warranty
Delivery Information
Have questions? Expert help just one click away Contact Us

Product Description

CSS610-8P-2S+IN is one of the most well-rounded switches on the market. It is a perfect fit for the most diverse setups: from home networks and small offices to hotels, call centers and so on. The unique combination of size, features, and price offers unbelievable scalability potential.

There are two SFP+ ports for 10 Gigabit fiber connectivity and eight Gigabit Ethernet ports with 802.3af/at PoE-out.

This switch is all about nice and easy setups. The compact form-factor means easier shipping and handling, while the lightweight SwOS means easier configuration. You can even configure this switch from your web browser! It gives you all the core functionality of a managed switch, and even more: you can manage port-to-port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitations, and even adjust some MAC and IP header fields.

But the real blessing is the combination of SFP+ and PoE-out Ethernet ports. With this setup, you can do all kinds of things on a tight budget. CSS610 has an impressive total PoE-out budget of 140 W, so you can use even in the most intense scenarios – like hotels, conference halls, or call centers! Use the PoE-out ports to connect the IP-phones while the SFP+ ports connect your primary server to the ISP. Or power a bunch of network cameras and instantly upload the footage to the cloud. And manage a cluster of wireless access points at the same time. Also, scalability is no longer a problem. With our pricing, you can afford a switch on every floor!

Like every toolbox needs screwdrivers and pliers, every network can use a solid PoE switch.

Specifications

General
Warranty 12
IP Rating IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion. IP20
A 10g Supp Yes
Certifications EAC
CN Code 85176200
Certifications CE/RoHS
Fanless Yes
Flash Memory 0.064 MB
Input Current 2.2 A
Model CSS610-8P-2S+IN
Reset Button Yes
Physical
Depth 216 mm
Height 50 mm
Width 272 mm
Colour White
Rack Mount Kit Yes
Rack Mounting Yes
Processor
Processor Model Marvell 88E6193X
Display
LED Indicators Yes
Storage
MTBF Mean Time Between Failures . statistical lifespan estimate in hours. 200000 h
Additional
SKU 1381200
EAN 4752224007216
Power
Input Frequency 50 - 60 Hz
Input Voltage 100 - 240 V
Dc Input Voltage 48 - 57 V
Max Power Draw 162 W
Power Source AC/DC
PSU Included Yes
Features
Broadcast Storm Control Yes
KVM Type KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort. Managed
Operating System
Operating System SwitchOS Lite
Networking
Basic Switching Rj 45 Ethernet Ports Quantity 8
Basic Switching Rj 45 Ethernet Ports Type Gigabit Ethernet (10/100/1000)
Installed Sfp Modules Quantity 2
Mac Address Filtering Yes
Networking Standards IEEE 802.3af/IEEE 802.3at
Power Over Ethernet Poe Yes
Power Over Ethernet Poe Ports Quantity 8
Power Over Ethernet Poe Type Supported Passive PoE
Switching Capacity 56 Gbit/s
Total Power Over Ethernet Poe Budget 140 W
Vlan Support Yes
