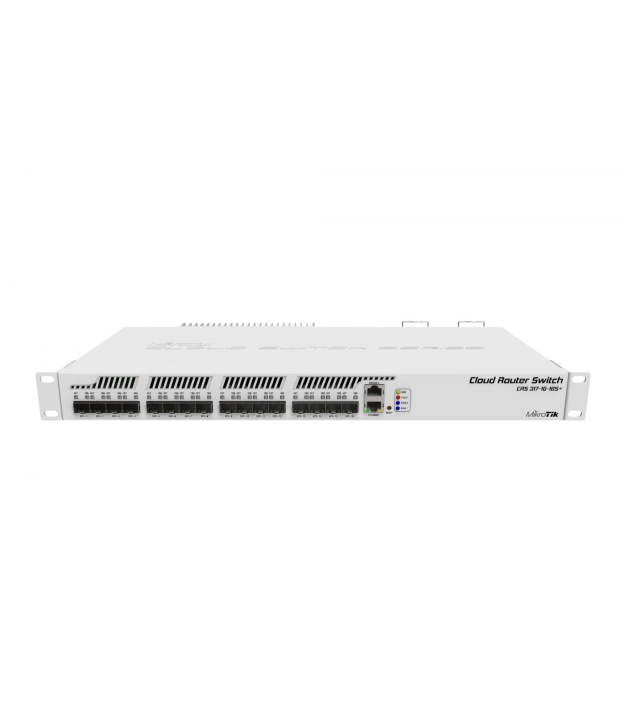

Switch, MIKROTIK, Type L3, CRS317-1G-16S+RM
MPN:
CRS317-1G-16S+RM
Brand:
MikroTik
€480.35
/ incl. VAT
€396.98
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
2 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.
CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.
The unit has dual redundant power supplies and passive cooling case, so it’s completely silent - for hot environments two redundant fans will automatically keep the system cool if needed.
Specifications
General
Warranty
12
A 10g Supp
Yes
Flash Memory
1000 MB
HS Code
85176990
Link Aggregation
Yes
Fan Count
2 fan(s)
Number Of Vlans
4000
Reset Button
Yes
Web Based Management
Yes
Physical
Depth
224 mm
Form Factor
1U
Height
44 mm
Width
443 mm
Mounting Brackets Included
Yes
Colour
Grey
Rack Mounting
Yes
Processor
Built-in Processor
Yes
Base Clock Speed
Base clock speed (GHz) is the guaranteed sustained frequency the CPU runs at under standard load. It sets the lower bound of performance. Higher base clock helps in software that cannot reach the boost frequency for long (long compilations, sustained simu
800 MHz
Connectivity
Console Port
RJ-45
Gigabit Ethernet Ports Quantity
1
Port Mirroring
Yes
Display
LED Indicators
Yes
Additional
SKU
1224779
EAN
4752224002167
Power
Input Voltage
110 - 240 V
Power Connector
DC-in jack
Max Power Draw
42 W
Features
Broadcast Storm Control
Yes
Switch Layer
L3
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Managed
Memory
RAM
RAM (Random Access Memory) is the system's working memory where active applications and the operating system live. More RAM means smoother multitasking and bigger files can be edited without swapping to disk. 16 GB is the comfortable minimum for modern sy
16 MB
Memory Type
DDR4 is the most common NAS memory standard; DDR5 is used in newer higher-end units.
Flash
Battery & Security
Security Protocols
SNMPv2/SNMPv3
Networking
Basic Switching Rj 45 Ethernet Ports Type
No
Networking Standards
IEEE 802.1Q
Power Over Ethernet Poe
No
Sfp Module Slots Quantity
16
Spanning Tree Protocol
Yes
Vlan Support
Yes
