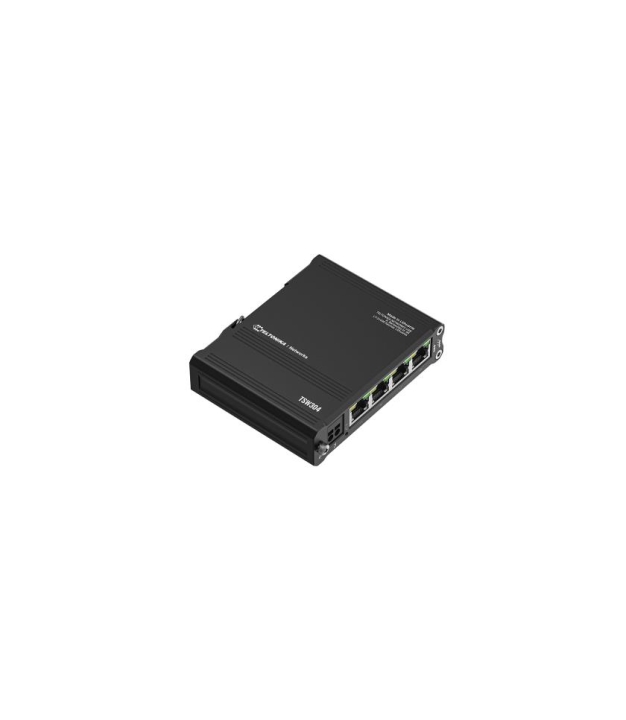

Switch, TELTONIKA, 4xRJ-45 ports, RJ-45 Ports Type Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE) Yes, TSW304

MPN: TSW304 Brand: TELTONIKA

€69.58 / incl. VAT

€57.50 / excl. VAT

This product is currently out of stock. Subscribe to back in stock notification.

Short description

Return Policy

Warranty

Delivery Information

Have questions? Expert help just one click away Contact Us

Product Description

DIN RAIL SWITCH
TSW304 is the tiniest switch in the Teltonika Networks portfolio, made with the industrial application scenarios in mind. This ultra-small device comes with an integrated DIN rail mounting option and will easily find its place in any server cabinet. Durable design and shock-resistant casing make it perfect for even the most challenging industrial environments.
MOUNTING
Integrated DIN rail bracket and surface mounting options
COMPACT
102 x 25 x 81.5 mm
GIGABIT ETHERNET
4 x Gigabit Ethernet with speeds of up to 1000 Mbps
7-57 V
Wide range of supported power supply voltages

Specifications

General

Warranty 24

IP Rating IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion. IP30

Model Name TSW304

A 10g Supp No

Certifications CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM

CN Code 85176200

Jumbo Frames 9216

Jumbo Frames Support Yes

Model TSW304

Operating Humidity 10 - 90 %

Packet Buffer Memory 0.128 MB

Physical

Weight 0.210000

Depth 81.5 mm

Height 25 mm

Width 102 mm

Din Rail Mounting Yes

Colour Black

Wall Mountable Yes

Display

LED Indicators Power/Status

Additional

SKU 1436743

EAN 4779051840144

Features

Auto Mdi Mdi X Yes

Power

Dc Input Voltage 7 - 57 V

Input Voltage 9 - 40 V

Max Power Draw 1.44 W

Typical Power Draw Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer. 0.26 W

Power Source AC/DC

Networking

Basic Switching Rj 45 Ethernet Ports Quantity 4

Basic Switching Rj 45 Ethernet Ports Type Gigabit Ethernet (10/100/1000)

Ethernet Data Rates 10, 100, 1000 Mbit/s

Mac Address Table 2000 entries

Networking Standards IEEE 802.3/IEEE 802.3az/IEEE 802.3u

Power Over Ethernet Poe Yes

Power Over Ethernet Poe Type Supported Passive PoE

Switching Capacity 8 Gbit/s
