Switch, TELTONIKA, Switch type Unmanaged, Form factor DIN rail, 5xRJ-45 ports, RJ-45 Ports Type Fast Ethernet (10/100), 5xFast Ethernet (copper) ports quantity, TSF010000000

MPN: TSF010000000 Brand: TELTONIKA

€69.33 / incl. VAT

€57.30 / excl. VAT

This product is currently out of stock. Subscribe to back in stock notification.

Short description

Return Policy

Warranty

Delivery Information

Have questions? Expert help just one click away Contact Us

Product Description

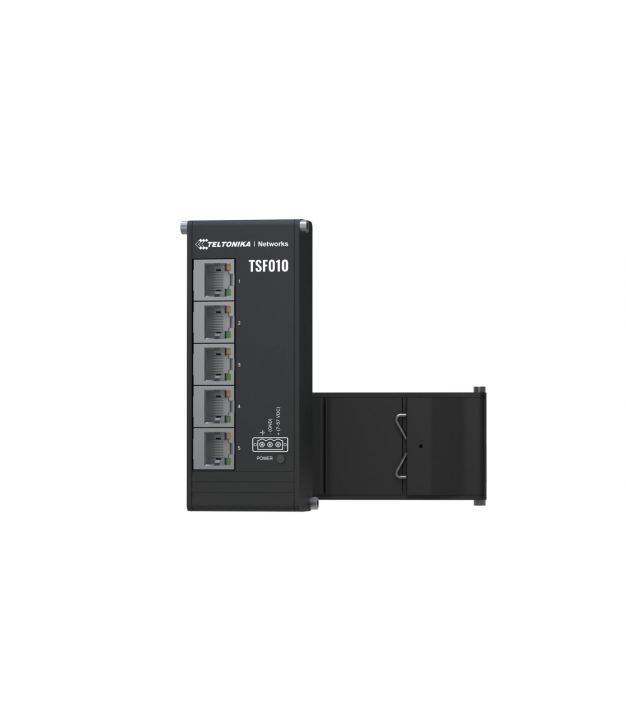

The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.

3-PIN POWER INPUT
Flexible and tailor-made for industrial use
FLAT & COMPACT
Flat and compact design weighing only 142 g
INTEGRATED DIN RAIL BRACKET
Easy mounting for plug-and-play deployment
7-57 VDC
Suitable voltage range for industrial applications

Specifications

General

Warranty 24

IP Rating IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion. IP30

A 10g Supp No

Jumbo Frames 9216

Jumbo Frames Support Yes

Operating Humidity 10 - 90 %

Stackable No

Physical

Weight 0.142000

Depth 50 mm

Form Factor DIN rail

Height 28 mm

Width 113 mm

Din Rail Mounting Yes

Colour Black

Rack Mounting No

Connectivity

Fast Ethernet Copper Ports Quantity 5

Full Duplex Yes

Additional

SKU 1456382

EAN 4779051841356

Features

Auto Mdi Mdi X Yes

KVM Type KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort. Unmanaged

Power

Input Voltage 7 - 57 V

Max Power Draw 1.5 W

Typical Power Draw Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer. 1 W

Power Source DC

PSU Included No

Networking

Basic Switching Rj 45 Ethernet Ports Quantity 5

Basic Switching Rj 45 Ethernet Ports Type Fast Ethernet (10/100)

Mac Address Table 2048 entries

Networking Standards IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x

Power Over Ethernet Poe No

Switching Capacity 10 Gbit/s
