Switch, TELTONIKA, SWM281000200, Switch type Managed, Switch layer L2, 24xRJ-45 ports, SWM281
MPN:
SWM281
Brand:
TELTONIKA
€189.97
/ incl. VAT
€157.00
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description

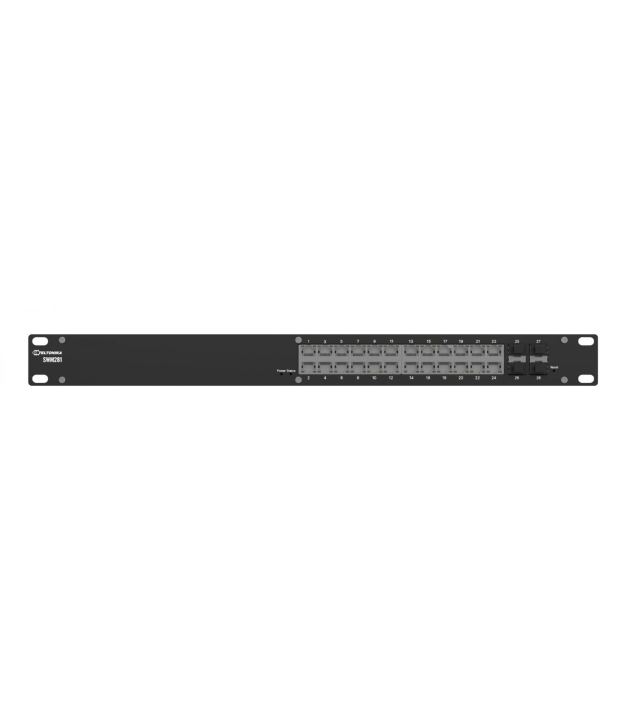

SWM281 Gigabit Ethernet managed switch
The SWM281 is an L2 managed switch with added L3 functionality, tailored for complex networking scenarios. With 24 Gigabit Ethernet ports and 4 dedicated SFP ports, it delivers high-bandwidth performance and reliable fibre optic communication for large-scale deployments. With support of PROFINET & other industrial protocols, this enterprise-grade 24-port switch ensures smooth integration into automated environments.
Specifications
General
Warranty
24
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP30
Model Name
SWM281
A 10g Supp
No
Certifications
CE, UKCA, CB, RCM, FCC, IC
Cloud Managed
Yes
CN Code
85176200
Flash Memory
16 MB
Forwarding Rate
83.33 Mpps
Jumbo Frames
10000
Jumbo Frames Support
Yes
Model
SWM281
Operating Humidity
10 - 90 %
Packet Buffer Memory
0.512 MB
Rate Limiting
Yes
Reset Button
Yes
Physical
Weight
1.853000
Depth
234 mm
Height
44 mm
Width
483 mm
Colour
Black
Rack Mounting
Yes
Display
LED Indicators
Yes
Connectivity
Port Mirroring
Yes
Additional
SKU
1453234
EAN
4779051846252
Power
Input Frequency
50/60 Hz
Input Voltage
100 - 240 V
Max Power Draw
20 W
Power Source
AC
PSU Included
No
Features
Auto Mdi Mdi X
Yes
Switch Layer
L2+
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Managed
Memory
RAM
RAM (Random Access Memory) is the system's working memory where active applications and the operating system live. More RAM means smoother multitasking and bigger files can be edited without swapping to disk. 16 GB is the comfortable minimum for modern sy
128 MB
Memory Type
DDR4 is the most common NAS memory standard; DDR5 is used in newer higher-end units.
DDR3-SDRAM
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
24
Basic Switching Rj 45 Ethernet Ports Type
Gigabit Ethernet (10/100/1000)
Dhcp Features
DHCP client/DHCP server
Ethernet Data Rates
10, 100, 1000 Mbit/s
Ip Routing
Yes
Mac Address Table
8 entries
Networking Standards
IEEE 802.3ab/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Power Over Ethernet Poe
No
Sfp Module Slots Quantity
4
Switching Capacity
56 Gbit/s
