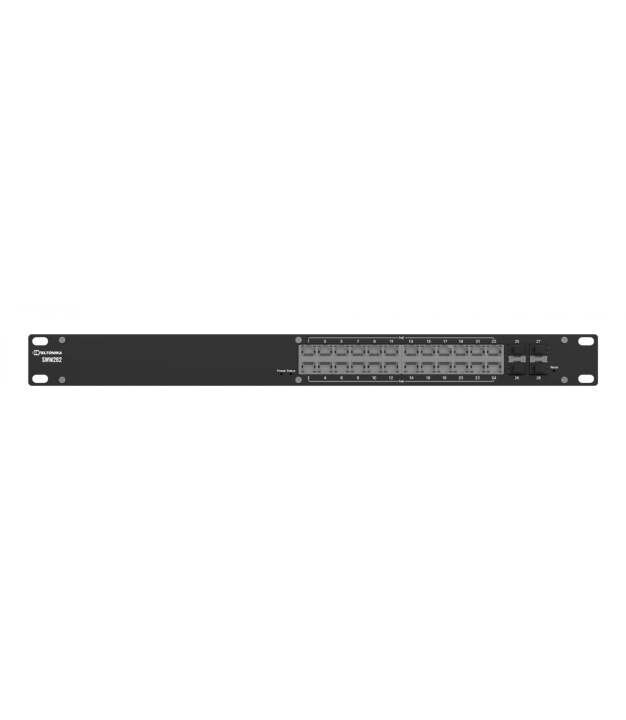

Switch, TELTONIKA, SWM282000200, Switch type Managed, Switch layer L2, 24xRJ-45 ports, Power over Ethernet (PoE) Yes, 24xPower over Ethernet plus (PoE+) ports quantity, SWM282
MPN:
SWM282
Brand:
TELTONIKA
€393.06
/ incl. VAT
€324.84
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
13 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
The SWM282 is a high-capacity L2 managed switch with enhanced L3 capabilities, built to simplify network control while delivering power and connectivity at scale. It features 24 PoE+ ports, supplying up to 30 W per port with a total power budget of 300 W, and 4 SFP ports. With support for PROFINET and other industrial protocols, this 24-port switch is an ideal choice for enterprise networks and IIoT solutions.
Specifications
General
Warranty
24
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP30
Model Name
SWM282000200
A 10g Supp
No
CN Code
85176200
Certifications
CB/CE/Federal Communications Commission (FCC)/Industry Canada (IC)/RCM/UKCA
Flash Memory
16 MB
Forwarding Rate
83.33 Mpps
Jumbo Frames
10000
Jumbo Frames Support
Yes
Model
SWM282
Operating Humidity
10 - 90 %
Packet Buffer Memory
0.512 MB
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Queue Scheduling Algorithms
SP/Weighted Round Robin (WRR)/WFQ
Rate Limiting
Yes
Reset Button
Yes
Static Route
Yes
Traffic Shaping
Yes
Web Based Management
Yes
Physical
Weight
2.291000
Depth
234 mm
Height
44 mm
Width
483 mm
Colour
Black
Rack Mounting
Yes
Processor
Built-in Processor
Yes
Base Clock Speed
Base clock speed (GHz) is the guaranteed sustained frequency the CPU runs at under standard load. It sets the lower bound of performance. Higher base clock helps in software that cannot reach the boost frequency for long (long compilations, sustained simu
500 MHz
Connectivity
Port Mirroring
Yes
Additional
SKU
1453233
EAN
4779051846276
Power
Input Frequency
50/60 Hz
Input Voltage
100 - 240 V
Power Connector
AC-in jack
Max Power Draw
330 W
Power Over Ethernet Poe Power Per Port
30 W
Power Source
AC
PSU Included
No
Features
Auto Mdi Mdi X
Yes
Loop Protection
Yes
Switch Layer
L2+
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Managed
Software
Firmware Upgradeable
Yes
Memory
RAM
RAM (Random Access Memory) is the system's working memory where active applications and the operating system live. More RAM means smoother multitasking and bigger files can be edited without swapping to disk. 16 GB is the comfortable minimum for modern sy
128 MB
Memory Type
DDR4 is the most common NAS memory standard; DDR5 is used in newer higher-end units.
DDR3-SDRAM
Battery & Security
Authentication Type
RADIUS, TACACS+
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
24
Basic Switching Rj 45 Ethernet Ports Type
Gigabit Ethernet (10/100/1000)
Dhcp Features
DHCP client/DHCP server/DHCPv6 client
Ethernet Data Rates
10, 100, 1000 Mbit/s
Mac Address Filtering
Yes
Mac Address Table
8000 entries
Networking Standards
IEEE 802.1p/IEEE 802.1Q/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Power Over Ethernet Modes
Alternative A
Power Over Ethernet Plus Poe Ports Quantity
24
Power Over Ethernet Poe
Yes
Power Over Ethernet Poe Type Supported
Active PoE/PoE+
Sfp Module Slots Quantity
4
Switching Capacity
56 Gbit/s
Total Power Over Ethernet Poe Budget
300 W
Vlan Support
Yes
