Switch, TELTONIKA, TSW040000000, PoE+ ports 8, 240 Watts, TSW040
MPN:
TSW040
Brand:
TELTONIKA
€69.12
/ incl. VAT
€57.12
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
5 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description

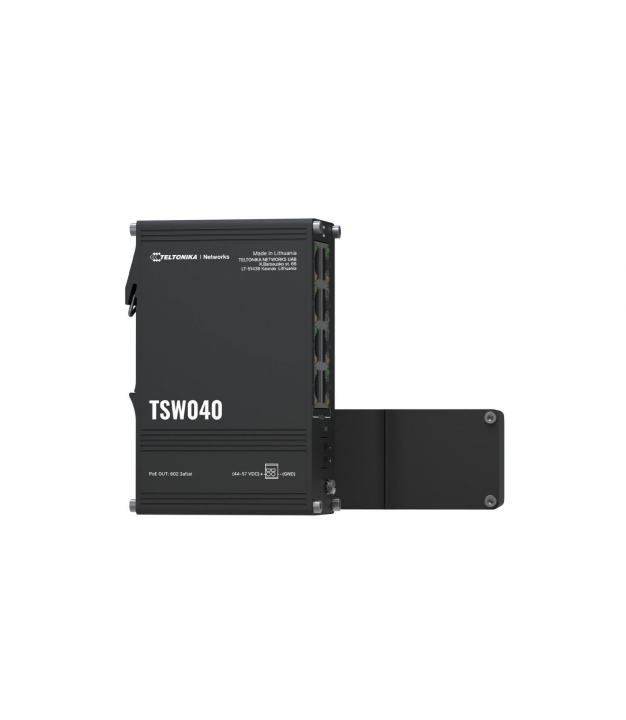

The TSW040 is an unmanaged 8-port PoE+ switch by Teltonika, featuring eight RJ45 ports with a total power budget of 240 W, or up to 30 W per port. This compact and rugged 8-port switch also features a 2-pin power input and an integrated DIN rail for easy mounting, making it ideal for industrial applications. The TSW040 has a wide voltage range of 7-57 VDC and a PoE-out voltage range of 44-57 VDC.
- 8 X POE-OUT RJ45
- Eight PoE-out Ethernet ports with a total power budget of 240 W
- 2-PIN POWER INPUT
- Simple and suitable for industrial applications
- INTEGRATED DIN RAIL
- Easy mounting for plug-and-play deployment
- WIDE VOLTAGE RANGE
- 7-57 VDC, or 44-57 VDC for PoE-out
Specifications
General
Warranty
24
Model Name
TSW040000000
A 10g Supp
No
CN Code
85176200
Model
TSW040
Operating Humidity
10 - 90 %
Reset Button
No
Stackable
No
Physical
Weight
0.280000
Depth
74.6 mm
Height
41.2 mm
Width
113.1 mm
Colour
Black
Rack Mounting
No
Connectivity
Fast Ethernet Copper Ports Quantity
8
Display
LED Indicators
Link/Power/Status
Additional
SKU
1435103
EAN
4779051841448
Power
Dc Input Voltage
7 - 57 V
Power Over Ethernet Poe Power Per Port
30 W
Power Over Ethernet Voltage
48 V
Power Source
DC
PSU Included
No
Features
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Unmanaged
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
8
Basic Switching Rj 45 Ethernet Ports Type
Fast Ethernet (10/100)
Mac Address Table
2048 entries
Networking Standards
IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Power Over Ethernet Poe
Yes
Power Over Ethernet Poe Ports Quantity
8
Power Over Ethernet Poe Type Supported
Active PoE
Switching Capacity
20 Gbit/s
Total Power Over Ethernet Poe Budget
240 W
