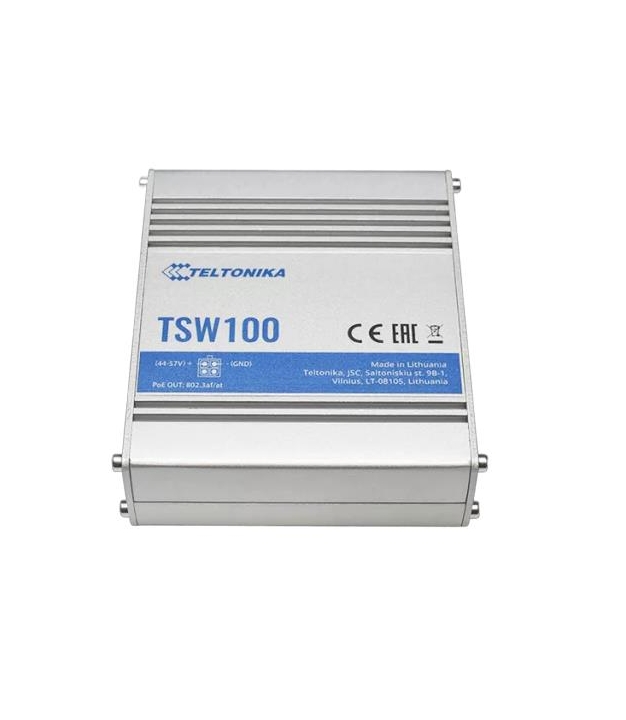

Switch, TELTONIKA, TSW100000000, PoE+ ports 4, 120 Watts, TSW100

MPN: TSW100 Brand: TELTONIKA

€68.61 / incl. VAT

€56.70 / excl. VAT

This product is currently out of stock. Subscribe to back in stock notification.

Short description

Return Policy

Warranty

Delivery Information

Have questions? Expert help just one click away Contact Us

Product Description

TSW100 – 5-port, unmanaged full Gigabit Ethernet switch supporting Power-over-Ethernet (802.3af and 802.3at standards). This device is classified as power source equipment (PSE), and when used in this way, TSW100 switch enables centralization of the power supply, providing up to 30 watts of power per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.

Specifications

General

Warranty 24

Model Name TSW100000000

Certifications CE/RED, EAC, RoHS, WEEE, Draft ETSI EN 301 489-1 V2.2.0, Draft EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0, EN 61000-4-2:2009, EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2, EN 61000-4-3:2006 +

HS Code 85176990

Jumbo Frames 9216

Model TSW100

Operating Humidity 10 - 90 %

Packet Buffer Memory 0.128 MB

Physical

Depth 95 mm

Height 32 mm

Width 115 mm

Colour Blue, Metallic

Display

LED Indicators Power/Status

Additional

SKU 1435106

EAN 4779027312828

Features

Auto Mdi Mdi X Yes

Power

Dc Input Voltage 7 - 58 V

Max Power Draw 129 W

Power Over Ethernet Poe Power Per Port 30 W

Networking

Basic Switching Rj 45 Ethernet Ports Quantity 5

Basic Switching Rj 45 Ethernet Ports Type Gigabit Ethernet (10/100/1000)

Mac Address Table 2000 entries

Networking Standards IEEE 802.3af/IEEE 802.3at/IEEE 802.3az

Power Over Ethernet Poe Yes

Power Over Ethernet Poe Ports Quantity 4

Total Power Over Ethernet Poe Budget 120 W
