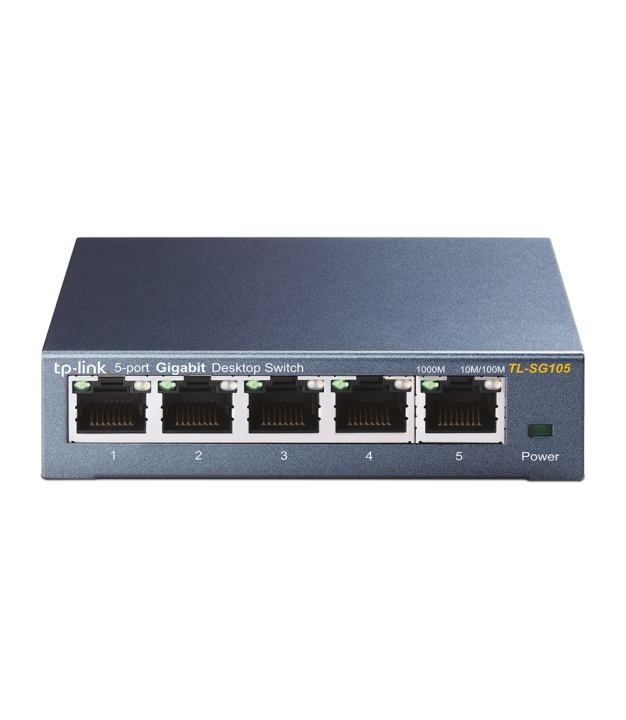

Switch, TP-LINK, 5x10Base-T / 100Base-TX / 1000Base-T, TL-SG105
€28.19
€23.30 / excl. VAT

Switch, TP-LINK, 5x10Base-T / 100Base-TX / 1000Base-T, TL-SG105

MPN: TL-SG105 Brand: TP-Link
€28.19 / incl. VAT
€23.30 / excl. VAT
In 2 Business Days
15 in Stock
Short description
Product Description
Return Policy
Delivery Information
Have questions? Expert help just one click away Contact Us

Product Description

What This Product Does
The TP-LINK 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG105 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105 can save up to 65% of the power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch
Featured with 5x 10/100/1000Mbps ports, TL-SG105 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
- Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105 can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 65% reduction in power use.
- Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

Specifications

General
Warranty 60
A 10g Supp No
Certifications CE, FCC, RoHS
Forwarding Rate 7.4 Mpps
Heat Dissipation 7.83 BTU/h
Igmp Snooping Yes
Input Current 0.6 A
Jumbo Frames 16000
Jumbo Frames Support Yes
Max Data Transfer Rate 2 Gbit/s
Operating Humidity 10 - 90 %
Operating Temperature Range 0 - 40 °C
Packet Buffer Memory 1 MB
QoS Support Quality of Service prioritises camera stream traffic on the network. Yes
Store And Forward Yes
Physical
Depth 98 mm
Height 25 mm
Width 100 mm
Colour Black
Rack Mount Kit Yes
Connectivity
Ethernet (LAN Port) Wired network port. More stable and faster than Wi-Fi for office and server use. Yes
Gigabit Ethernet Ports Quantity 5
Wi-Fi No
Print
Full Duplex Yes
Display
LED Indicators Yes
Power Led Yes
Additional
SKU 1139662
EAN 6935364021146
Features
Auto Mdi Mdi X Yes
Auto Negotiation Yes
Connection Type Wired
Flow Control Support Yes
KVM Type KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort. Unmanaged
Power
Input Voltage 9 V
Power Connector DC-in jack
Max Power Draw 2.3 W
Power Source DC
PSU Included Yes
Compatibility
Supported Data Transfer Rates 10/100/1000Mbps
Networking
Basic Switching Rj 45 Ethernet Ports Quantity 5
Basic Switching Rj 45 Ethernet Ports Type Gigabit Ethernet (10/100/1000)
Ethernet Data Rates 10, 100, 1000 Mbit/s
Mac Address Table 2000 entries
Networking Standards IEEE 802.1p/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Power Over Ethernet Poe No
Switching Capacity 10 Gbit/s
Switching Protocols CSMA/CD
