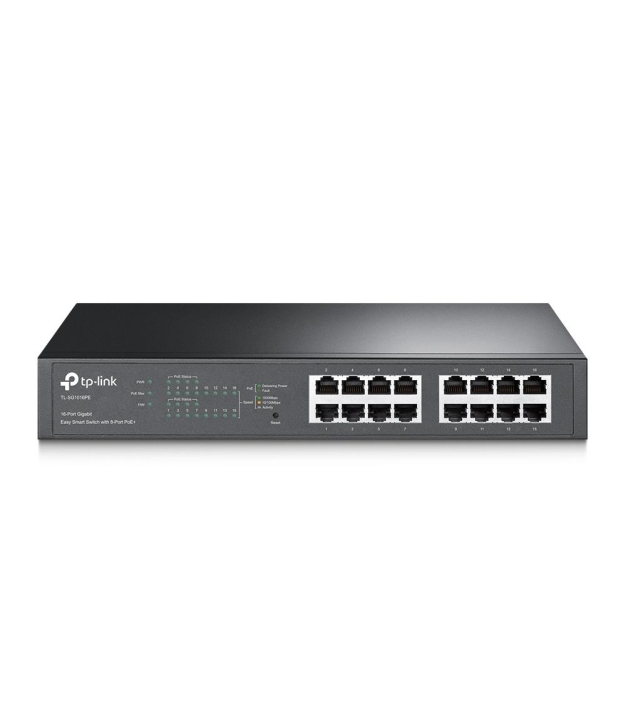

Switch, TP-LINK, Desktop/pedestal, 16x10Base-T / 100Base-TX / 1000Base-T, PoE+ ports 8, TL-SG1016PE
MPN:
TL-SG1016PE
Brand:
TP-Link
€199.49
/ incl. VAT
€164.87
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
What This Product Does
The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
Specifications
General
Warranty
60
Model Name
16-Port Gigabit Easy Smart Switch with 8-Port PoE+
A 10g Supp
No
Certifications
CE/Federal Communications Commission (FCC)/RoHS
Forwarding Rate
23.8 Mpps
Igmp Snooping
Yes
Jumbo Frames
10000
Jumbo Frames Support
Yes
Link Aggregation
Yes
Fan Count
1 fan(s)
Number Of Queues
4
Number Of Vlans
4000
Operating Humidity
10 - 90 %
Operating Temperature Range
0 - 40 °C
Packet Buffer Memory
4.1 MB
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Stackable
No
Store And Forward
Yes
Web Based Management
Yes
Physical
Depth
180 mm
Form Factor
1U
Height
44 mm
Width
294 mm
Maximum Cable Length
100 m
Colour
Black
Rack Mount Kit
Yes
Rack Mounting
Yes
Connectivity
Copper Ethernet Cabling Technology
1000BASE-T/100BASE-TX/10BASE-T
Gigabit Ethernet Ports Quantity
16
Port Mirroring
Yes
Display
LED Indicators
Yes
Storage
Resource Cd
Yes
Additional
SKU
1223719
EAN
6935364098865
Power
Input Frequency
50/60 Hz
Input Voltage
100 - 240 V
Power Connector
AC-in jack
Max Power Draw
124.4 W
Power Over Ethernet Poe Power Per Port
30 W
Power Source
AC/PoE
PSU Included
Yes
Features
Auto Mdi Mdi X
Yes
Auto Negotiation
Yes
Broadcast Storm Control
Yes
Flow Control Support
Yes
Switch Layer
L2
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Managed
Virtual Lan Features
Port-based VLAN/Tagged VLAN
Compatibility
Cable Types Supported
Cat3/Cat4/Cat5/Cat5e/Cat6
Operating System
Supported OS
Windows
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
16
Basic Switching Rj 45 Ethernet Ports Type
Gigabit Ethernet (10/100/1000)
Mac Address Table
8000 entries
Networking Standards
IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Power Over Ethernet Plus Poe Ports Quantity
8
Power Over Ethernet Poe
Yes
Switching Capacity
32 Gbit/s
Total Power Over Ethernet Poe Budget
110 W
Vlan Support
Yes
