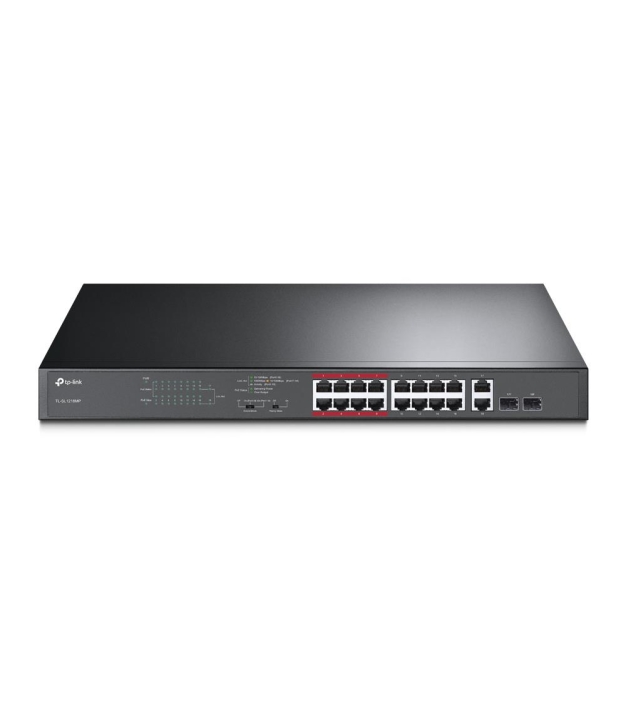

Switch, TP-LINK, Desktop/pedestal, 16x10Base-T / 100Base-TX, 2x10/100/1000BASE-T/SFP combo, PoE+ ports 16, 192 Watts, TL-SL1218MP
MPN:
TL-SL1218MP
Brand:
TP-Link
€223.81
/ incl. VAT
€184.97
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Easy to Use PoE Switch with Innovative Design
Up To 250m Data and Power Transmission for Surveillance
High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.
Video Quality Guaranteed
Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.
Up To 250m Data and Power Transmission for Surveillance
High PoE Power Budget
TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
Up to 250m Transmission for Surveillance
TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.
Video Quality Guaranteed
Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.
Specifications
General
Warranty
60
Model Name
16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
A 10g Supp
No
HS Code
85176990
Heat Dissipation
741.15 BTU/h
Jumbo Frames
10000
Jumbo Frames Support
Yes
Fan Count
2 fan(s)
Operating Humidity
10 - 90 %
Operating Temperature Range
0 - 40 °C
Packet Buffer Memory
4.1 MB
Stackable
No
Store And Forward
Yes
Physical
Depth
180 mm
Height
44 mm
Width
440 mm
Colour
Black
Rack Mounting
Yes
Connectivity
Copper Ethernet Cabling Technology
1000BASE-T/100BASE-TX/10BASE-T
Fast Ethernet Copper Ports Quantity
16
Gigabit Ethernet Ports Quantity
2
Display
LED Indicators
LAN/PoE/Status
Additional
SKU
1260700
EAN
6935364099824
Power
Input Frequency
50 - 60 Hz
Input Voltage
100 - 240 V
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
18.7 W
Power Source
AC
PSU Included
Yes
Features
Auto Mdi Mdi X
Yes
Flow Control Support
Yes
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Unmanaged
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
16
Basic Switching Rj 45 Ethernet Ports Type
Fast Ethernet (10/100)
Combo Sfp Ports Quantity
2
Mac Address Filtering
Yes
Mac Address Table
8000 entries
Networking Standards
IEEE 802.3af/IEEE 802.3at
Power Over Ethernet Plus Poe Ports Quantity
16
Power Over Ethernet Poe
Yes
Switching Capacity
7.2 Gbit/s
Total Power Over Ethernet Poe Budget
192 W
