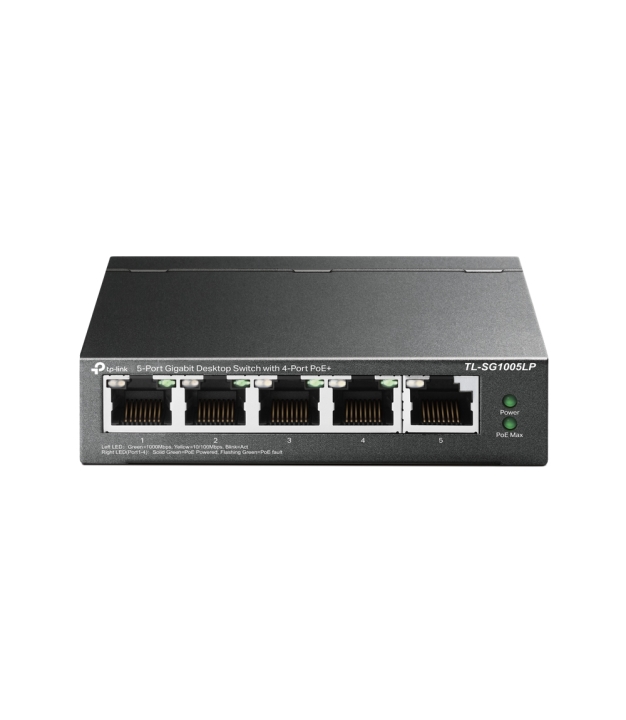

Switch, TP-LINK, Desktop/pedestal, 5x10Base-T / 100Base-TX / 1000Base-T, PoE ports 1, TL-SG1005LP
MPN:
TL-SG1005LP
Brand:
TP-Link
€48.34
/ incl. VAT
€39.95
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Professional 5-Port Gigabit Switch with 4 PoE+ Ports
Plug and Play, with PoE power supply which meets the needs of diverse devices.
Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Intelligent Power Management
When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Advanced Functions for Higher Performance
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Durable Metal Casing
The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.
Plug and Play, with PoE power supply which meets the needs of diverse devices.
Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Intelligent Power Management
When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Advanced Functions for Higher Performance
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Durable Metal Casing
The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.
Specifications
General
Warranty
60
A 10g Supp
No
Certifications
FCC, CE, RoHS
Certifications
CE/Federal Communications Commission (FCC)/RoHS
Fanless
Yes
Forwarding Rate
7.44 Mpps
HS Code
85176990
Heat Dissipation
161.98 BTU/h
Igmp Snooping
Yes
Input Current
0.81 A
Jumbo Frames
16000
Jumbo Frames Support
Yes
Model
TL-SG1005LP
Operating Humidity
10 - 90 %
Operating Temperature Range
0 - 40 °C
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Stackable
No
Store And Forward
Yes
Physical
Depth
98 mm
Height
25 mm
Width
99.8 mm
Maximum Cable Length
100 m
Colour
Black
Rack Mounting
No
Wall Mountable
Yes
Connectivity
Copper Ethernet Cabling Technology
1000BASE-T/100BASE-TX/10BASE-T
Gigabit Ethernet Ports Quantity
5
Display
LED Indicators
Yes
Additional
SKU
1310596
EAN
6935364052720
Power
Input Frequency
50/60 Hz
Input Voltage
100 - 240 V
Dc Input Voltage
53.5 V
Max Power Draw
47.5 W
Power Source
DC/PoE
PSU Included
Yes
Features
Auto Mdi Mdi X
Yes
Auto Negotiation
Yes
Flow Control Support
Yes
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Unmanaged
Compatibility
Cable Types Supported
Cat3/Cat4/Cat5/Cat5e/Cat6
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
5
Basic Switching Rj 45 Ethernet Ports Type
Gigabit Ethernet (10/100/1000)
Mac Address Auto Aging Supported
Yes
Mac Address Auto Learning Supported
Yes
Mac Address Table
2000 entries
Networking Standards
IEEE 802.1p/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Power Over Ethernet Plus Poe Ports Quantity
4
Power Over Ethernet Poe
Yes
Switching Capacity
10 Gbit/s
Total Power Over Ethernet Poe Budget
40 W
