Special offer

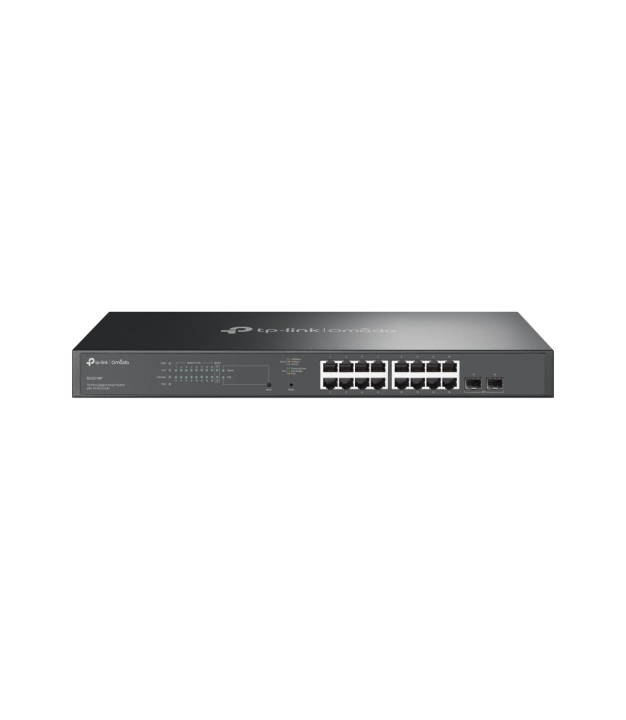

Switch, TP-LINK, Omada, SG2218P, Desktop/pedestal, 16x10Base-T / 100Base-TX / 1000Base-T, 2xSFP, PoE+ ports 16, 150 Watts, SG2218P
MPN:
SG2218P
Brand:
TP-Link
€373.37
/ incl. VAT
€308.57
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
2 in Stock
Short description
Product Description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The
switches can be managed by Omada SDN Controller, which provides professional and reliable one-step
solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing
provide cost-effective networking solutions for small and medium-sized businesses without sacrificing
enhanced usability and strong performance.
switches can be managed by Omada SDN Controller, which provides professional and reliable one-step
solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing
provide cost-effective networking solutions for small and medium-sized businesses without sacrificing
enhanced usability and strong performance.
Specifications
General
Warranty
60
Model Name
SG2218P
A 10g Supp
No
Arp Inspection
Yes
Certifications
CE, FCC, RoHS
Cloud Managed
Yes
Forwarding Rate
26.78 Mpps
Heat Dissipation
619.06 BTU/h
Jumbo Frames
9
Jumbo Frames Support
Yes
Link Aggregation
Yes
Mib Support
MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1, 2, 3, 9)
Multicast Support
Yes
Operating Humidity
10 - 90 %
Operating Temperature Range
0 - 50 °C
Packet Buffer Memory
4.1 MB
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Rate Limiting
Yes
Series
Omada
Ssh Ssl Support
Yes
System Event Log
Yes
Web Based Management
Yes
Multicast Features
Multicast forwarding
Physical
Depth
180 mm
Form Factor
1U
Height
44 mm
Width
440 mm
Colour
Black
Rack Mounting
Yes
Display
LED Indicators
Yes
Additional
SKU
1424574
EAN
4897098689509
Power
Input Frequency
50/60 Hz
Input Voltage
100 - 240 V
Max Power Draw
181.4 W
Power Source
DC/PoE
PSU Included
Yes
Features
Access Control List Acl
Yes
Auto Mdi Mdi X
Yes
Auto Negotiation
Yes
Bpdu Filtering Protection
Yes
Broadcast Storm Control
Yes
Configuring Location Settings
Yes
Flow Control Support
Yes
Loop Protection
Yes
Switch Layer
L2/L2+
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Managed
Battery & Security
Authentication
MAC-based authentication, Port-based authentication
Static Port Security
Yes
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
16
Basic Switching Rj 45 Ethernet Ports Type
Gigabit Ethernet (10/100/1000)
Dhcp Features
DHCP client/DHCP relay/DHCP snooping
Ethernet Data Rates
10, 100, 1000 Mbit/s
Ip Routing
Yes
Mac Address Filtering
Yes
Mac Address Table
8000 entries
Networking Standards
IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Policy Based Routing
Yes
Power Over Ethernet Poe
Yes
Sfp Module Slots Quantity
2
Spanning Tree Protocol
Yes
Switching Capacity
26.78 Gbit/s
Total Power Over Ethernet Poe Budget
150 W
Vlan Support
Yes
