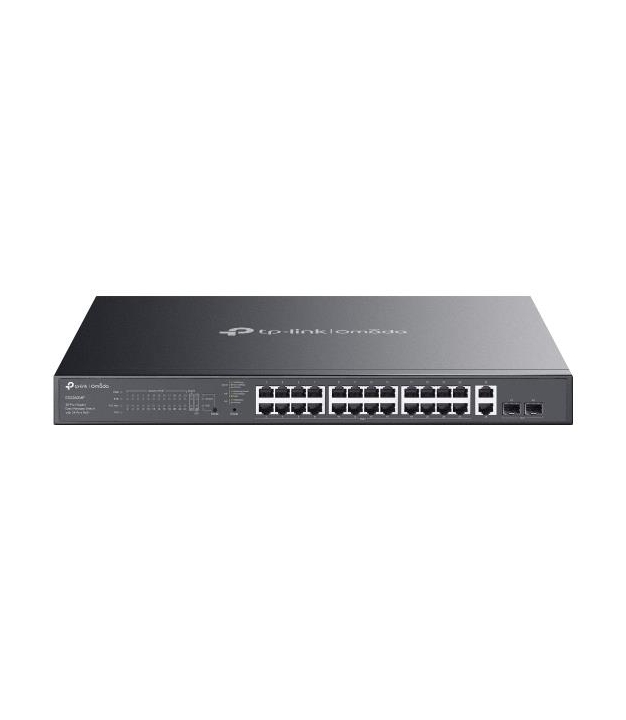

TP-Link Omada ES228GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
MPN:
ES228GMP
Brand:
TP-Link
€381.16
/ incl. VAT
€315.01
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
3 in Stock
Short description
Product Description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Specifications
General
Warranty
60
Model Name
ES228GMP
A 10g Supp
No
Certifications
FCC, CE, RoHS
Cloud Managed
Yes
Certifications
CE/Federal Communications Commission (FCC)/RoHS
Fanless
No
Fast Leave
Yes
Flash Memory
64 MB
Forwarding Rate
41.66 Mpps
Heat Dissipation
1546.15 BTU/h
Igmp Snooping
Yes
Jumbo Frames
15000
Jumbo Frames Support
Yes
Link Aggregation
Yes
Multicast Support
Yes
Noise Level
dB(A) of operational noise. Under 30 dB is very quiet (whisper level).
46.2 dB
Fan Count
2 fan(s)
Number Of Vlans
32
Operating Humidity
10 - 90 %
Packet Buffer Memory
4 MB
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Queue Scheduling Algorithms
Weighted Round Robin (WRR)
Series
Omada
Store And Forward
Yes
Unified Static Configuration
Yes
Web Based Management
Yes
Physical
Depth
330 mm
Height
44 mm
Width
440 mm
Colour
Black
Rack Mount Kit
Yes
Rack Mounting
Yes
Connectivity
Copper Ethernet Cabling Technology
1000BASE-T/1000BASE-X/100BASE-X/10BASE-T
Gigabit Ethernet Ports Quantity
26
Port Mirroring
Yes
Display
LED Indicators
Yes
Storage
MTBF
Mean Time Between Failures . statistical lifespan estimate in hours.
224143 h
Additional
SKU
1440331
EAN
1210002600989
Power
Input Frequency
50/60 Hz
Input Voltage
100 - 240 V
Max Power Draw
454.8 W
Power Over Ethernet Poe Power Per Port
30 W
Power Source
AC
PSU Included
Yes
Surge Protection Voltage
6 kV
Features
Auto Mdi Mdi X
Yes
Broadcast Storm Control
Yes
Flow Control Support
Yes
Surge Protection
Yes
Switch Layer
L2
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Managed
Virtual Lan Features
MTU VLAN/Port-based VLAN/Tagged VLAN
Software
Firmware Upgradeable
Yes
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
26
Basic Switching Rj 45 Ethernet Ports Type
Gigabit Ethernet (10/100/1000)
Dhcp Features
DHCP client
Ethernet Data Rates
10, 100, 1000 Mbit/s
Mac Address Table
8000 entries
Networking Standards
IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Power Over Ethernet Plus Poe Ports Quantity
24
Power Over Ethernet Poe
Yes
Power Over Ethernet Poe Type Supported
PoE+
Sfp Module Slots Quantity
2
Switching Capacity
56 Gbit/s
Total Power Over Ethernet Poe Budget
384 W
Vlan Support
Yes
