Special offer

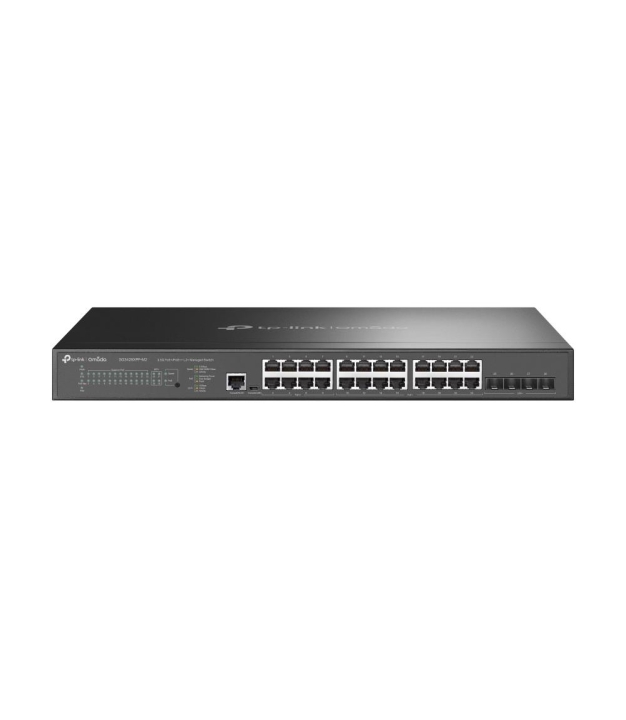

TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
MPN:
SG3428XPP-M2
Brand:
TP-Link
€1,054.20
/ incl. VAT
€871.24
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
3 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Specifications
General
Warranty
24
Model Name
Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
A 10g Supp
Yes
Arp Inspection
Yes
Cloud Managed
Yes
Certifications
CE/Federal Communications Commission (FCC)/RoHS
Flash Memory
32 MB
Forwarding Rate
148.8 Mpps
Head Of Line Blocking
Yes
Heat Dissipation
2153.45 BTU/h
Igmp Snooping
Yes
Jumbo Frames
9000
Jumbo Frames Support
Yes
Link Aggregation
Yes
Management Protocols
SNMP v1/v2c/v3
Mib Support
RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Multicast Listener Discovery Snooping
MLD v1/v2
Multicast Support
Yes
Fan Count
3 fan(s)
Number Of Queues
8
Number Of Static Routes
48
Operating Humidity
10 - 90 %
Packet Buffer Memory
16 MB
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Queue Scheduling Algorithms
SP/Weighted Round Robin (WRR)/WRR+SP
Rate Limiting
Yes
Redundant Fans Support
Yes
Series
Omada
Ssh Ssl Support
Yes
Static Route
Yes
Store And Forward
Yes
System Event Log
Yes
Web Based Management
Yes
Physical
Depth
330 mm
Form Factor
1U
Height
44 mm
Width
440 mm
Colour
Black
Rack Mount Kit
Yes
Rack Mounting
Yes
Connectivity
A 2 5g Eth Pts Qty
24
Console Port
RJ-45/Micro-USB
Ip Mac Port Binding
Yes
Number Of Ip Interfaces
32
Port Mirroring
Yes
Print
Full Duplex
Yes
Half Duplex
Yes
Display
LED Indicators
Yes
Additional
SKU
1420715
EAN
4897098689738
Power
Input Frequency
50/60 Hz
Input Voltage
100 - 240 V
Max Power Draw
629.1 W
Power Source
AC/PoE
PSU Included
Yes
Redundant Power Supply Rps Support
Yes
Features
Access Control List Acl
Yes
Bpdu Filtering Protection
Yes
Broadcast Storm Control
Yes
Configuring Location Settings
Yes
Flow Control Support
Yes
Loop Protection
Yes
Switch Layer
L2+
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Managed
Virtual Lan Features
MAC address-based VLAN/Port-based VLAN/Protocol-based VLAN/Stacked VLAN/Tagged VLAN/Voice VLAN
Memory
RAM
RAM (Random Access Memory) is the system's working memory where active applications and the operating system live. More RAM means smoother multitasking and bigger files can be edited without swapping to disk. 16 GB is the comfortable minimum for modern sy
256 MB
Memory Type
DDR4 is the most common NAS memory standard; DDR5 is used in newer higher-end units.
DRAM
Battery & Security
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication
Authentication Type
AAA, IEEE 802.1x, RADIUS, TACACS+
Password Protection
Yes
Security Protocols
HTTPS/SSH/SSH-2/SSL/TLS
Static Port Security
Yes
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
24
Basic Switching Rj 45 Ethernet Ports Type
2.5G Ethernet (100/1000/2500)
Dhcp Features
DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping
Ethernet Data Rates
10, 100, 1000, 2500, 10000 Mbit/s
Garp Vlan Registration Protocol Gvrp
Yes
Ipv4 Ipv6 Features
IPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 portal/IPv6 tracert
Ipv4 Routes
48
Ipv6 Routes
48
Mac Address Table
32000 entries
Networking Standards
IEEE 802.1ab/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3ae/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3bz/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Power Over Ethernet 4ppoe Ports Quantity
8
Power Over Ethernet Plus Poe Ports Quantity
16
Power Over Ethernet Poe
Yes
Sfp Module Slots Quantity
4
Spanning Tree Protocol
Yes
Switching Capacity
200 Gbit/s
Total Power Over Ethernet Poe Budget
500 W
Vlan Support
