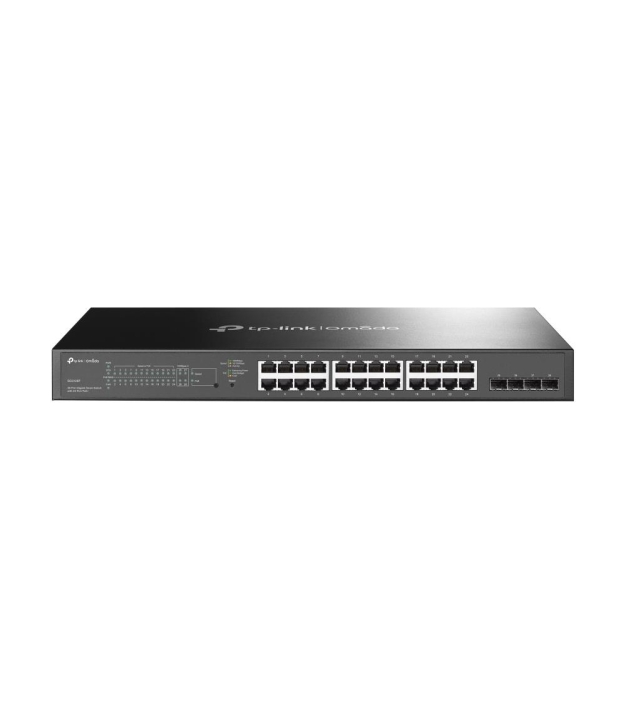

TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+
MPN:
TL-SG2428P
Brand:
TP-Link
€466.84
/ incl. VAT
€385.82
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
2 in Stock
Short description
Product Description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Specifications
General
Warranty
60
Model Name
Omada 28-Port Gigabit Smart Switch with 24-Port PoE+
A 10g Supp
No
Arp Inspection
Yes
Certifications
CE, FCC, RoHS
Forwarding Rate
41.66 Mpps
Heat Dissipation
1052.94 BTU/h
Igmp Snooping
Yes
Jumbo Frames
9000
Jumbo Frames Support
Yes
Link Aggregation
Yes
Management Protocols
SNMPv1/v2c/v3, SNTP
Mib Support
Yes
Multicast Support
Yes
Fan Count
2 fan(s)
Number Of Queues
8
Number Of Vlans
4000
Operating Humidity
10 - 90 %
Packet Buffer Memory
4.1 MB
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Queue Scheduling Algorithms
SP/Weighted Round Robin (WRR)/WRR+SP
Rate Limiting
Yes
Series
Omada
Ssh Ssl Support
Yes
System Event Log
Yes
Web Based Management
Yes
Physical
Depth
220 mm
Form Factor
1U
Height
44 mm
Width
440 mm
Colour
Black
Rack Mount Kit
Yes
Rack Mounting
Yes
Connectivity
Copper Ethernet Cabling Technology
1000BASE-T/10BASE-T
Fiber Ethernet Cabling Technology
1000BASE-X
Gigabit Ethernet Ports Quantity
24
Ip Mac Port Binding
Yes
Port Mirroring
Yes
Additional
SKU
47200251
EAN
6935364030650
Power
Input Frequency
50/60 Hz
Input Voltage
100 - 240 V
Max Power Draw
301.1 W
Power Over Ethernet Poe Power Per Port
30 W
Power Source
AC
PSU Included
Yes
Features
Access Control List Acl
Yes
Bpdu Filtering Protection
Yes
Broadcast Storm Control
Yes
Flow Control Support
Yes
Switch Layer
L2/L2+
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Managed
Virtual Lan Features
MAC address-based VLAN/Protocol-based VLAN/Voice VLAN
Software
Firmware Upgradeable
Yes
Battery & Security
Authentication Type
RADIUS
Security Protocols
HTTPS/SNMP/SNMPv2/SNMPv3/SSH/SSH-2/SSL/TLS
Compatibility
Cable Types Supported
Cat3/Cat4/Cat5/Cat5e
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
24
Basic Switching Rj 45 Ethernet Ports Type
Gigabit Ethernet (10/100/1000)
Dhcp Features
DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client
Mac Address Table
8000 entries
Networking Standards
IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3az/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Power Over Ethernet Plus Poe Ports Quantity
24
Power Over Ethernet Poe
Yes
Sfp Module Slots Quantity
4
Spanning Tree Protocol
Yes
Switching Capacity
56 Gbit/s
Total Power Over Ethernet Poe Budget
250 W
Vlan Support
Yes
