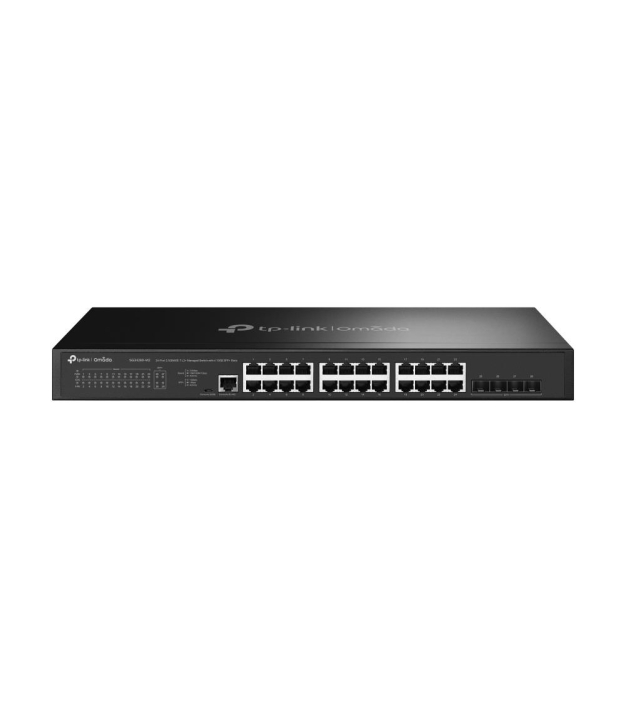

Switch, TP-LINK, Omada, TL-SG3428X-M2, Type L2+, 4xSFP+, 1xConsole, 1, TL-SG3428X-M2
MPN:
TL-SG3428X-M2
Brand:
TP-Link
€691.19
/ incl. VAT
€571.23
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Specifications
General
Warranty
60
Model Name
TL-SG3428X-M2
A 10g Supp
Yes
Arp Inspection
Yes
Certifications
CE, FCC, RoHS
Cloud Managed
Yes
Certifications
CE/Federal Communications Commission (FCC)/RoHS
Forwarding Rate
148.8 Mpps
Head Of Line Blocking
Yes
Heat Dissipation
154.38 BTU/h
Igmp Snooping
Yes
Jumbo Frames
9000
Jumbo Frames Support
Yes
Link Aggregation
Yes
Management Protocols
SNMP v1/v2c/v3, SNTP
Mib Support
Yes
Multicast Listener Discovery Snooping
Yes
Multicast Support
Yes
Fan Count
1 fan(s)
Number Of Static Routes
48
Operating Humidity
10 - 90 %
Operating Temperature Range
0 - 40 °C
Packet Buffer Memory
16 MB
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Rate Limiting
Yes
Series
Omada
Ssh Ssl Support
Yes
Static Route
Yes
Store And Forward
Yes
System Event Log
Yes
Web Based Management
Yes
Physical
Depth
180 mm
Form Factor
1U
Height
44 mm
Width
440 mm
Colour
Black
Rack Mounting
Yes
Connectivity
A 2 5g Eth Pts Qty
24
Console Port
RJ-45/Micro-USB
Ip Mac Port Binding
Yes
Port Mirroring
Yes
Display
LED Indicators
Yes
Additional
SKU
1398248
EAN
4897098689745
Power
Input Frequency
50/60 Hz
Input Voltage
100 - 240 V
Power Connector
AC-in jack
Max Power Draw
45.1 W
Power Source
AC
PSU Included
Yes
Features
Access Control List Acl
Yes
Active Link Detection
Yes
Bpdu Filtering Protection
Yes
Broadcast Storm Control
Yes
Configuring Location Settings
Yes
Flow Control Support
Yes
Loop Protection
Yes
Switch Layer
L2+
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Managed
Virtual Lan Features
Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN
Battery & Security
Authentication
Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Authentication Type
AAA, RADIUS, TACACS+
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
24
Basic Switching Rj 45 Ethernet Ports Type
2.5G Ethernet (100/1000/2500)
Dhcp Features
DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping
Garp Vlan Registration Protocol Gvrp
Yes
Ipv4 Ipv6 Features
IPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 Telnet/IPv6 tracert
Ipv4 Routes
48
Ipv6 Routes
48
Mac Address Table
32000 entries
Networking Standards
IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3bz/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z
Policy Based Routing
Yes
Power Over Ethernet Poe
No
Sfp Module Slots Quantity
4
Spanning Tree Protocol
Yes
Switching Capacity
200 Gbit/s
Vlan Support
Yes
Ipv4 Fib Entries
100
Ipv6 Fib Entries
100
