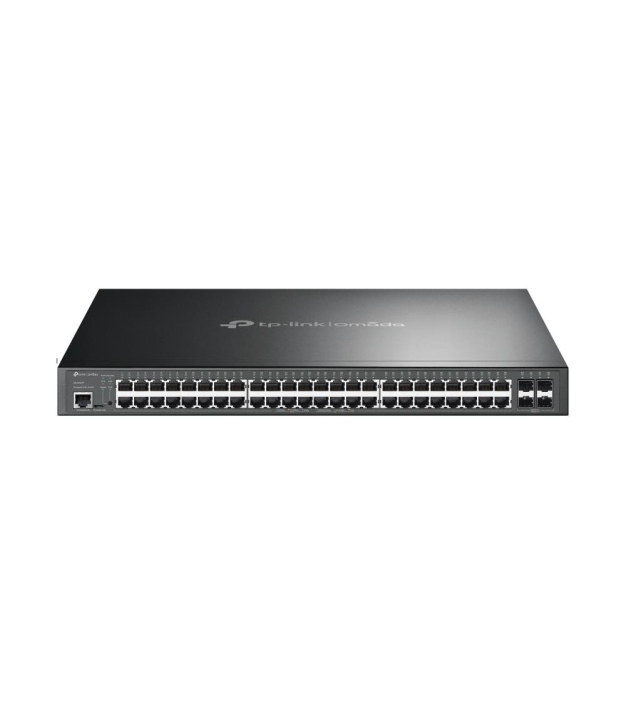

TP-Link Omada 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+
MPN:
TL-SG3452P
Brand:
TP-Link
€915.52
/ incl. VAT
€756.63
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Specifications
General
Warranty
60
Model Name
TL-SG3452P
A 10g Supp
No
Arp Inspection
Yes
Cloud Managed
Yes
Forwarding Rate
77.38 Mpps
Head Of Line Blocking
Yes
Heat Dissipation
1584.08 BTU/h
Igmp Snooping
Yes
Jumbo Frames
9000
Jumbo Frames Support
Yes
Link Aggregation
Yes
Management Protocols
SNMPv1/v2c/v3, SNTP
Mib Support
Yes
Multicast Support
Yes
Fan Count
3 fan(s)
Number Of Static Routes
48
Number Of Vlans
4000
Operating Humidity
10 - 90 %
Packet Buffer Memory
12 MB
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Rate Limiting
Yes
Reset Button
Yes
Series
Omada
Ssh Ssl Support
Yes
Static Route
Yes
Store And Forward
Yes
System Event Log
Yes
Web Based Management
Yes
Physical
Depth
330 mm
Form Factor
1U
Height
44 mm
Width
440 mm
Colour
Black
Rack Mounting
Yes
Connectivity
Console Port
RJ-45/Micro-USB
Port Mirroring
Yes
Display
LED Indicators
Yes
Additional
SKU
1334796
EAN
6935364006273
Power
Input Frequency
50/60 Hz
Input Voltage
100 - 240 V
Power Connector
AC-in jack
Max Power Draw
464.2 W
Power Over Ethernet Poe Power Per Port
30 W
Power Source
AC
PSU Included
Yes
Features
Access Control List Acl
Yes
Active Link Detection
Yes
Bpdu Filtering Protection
Yes
Broadcast Storm Control
Yes
Flow Control Support
Yes
Loop Protection
Yes
Switch Layer
L2/L3
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Managed
Virtual Lan Features
MAC address-based VLAN/Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN
Battery & Security
Authentication
MAC-based authentication, Port-based authentication
Password Protection
Yes
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
48
Basic Switching Rj 45 Ethernet Ports Type
Gigabit Ethernet (10/100/1000)
Dhcp Features
DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping
Ethernet Data Rates
10, 100, 1000 Mbit/s
Garp Vlan Registration Protocol Gvrp
Yes
Ip Routing
Yes
Mac Address Table
16000 entries
Networking Standards
IEEE 802.1D/IEEE 802.1p/IEEE 802.1s/IEEE 802.1w/IEEE 802.3ad/IEEE 802.3x
Policy Based Routing
Yes
Power Over Ethernet Plus Poe Ports Quantity
48
Power Over Ethernet Poe
Yes
Sfp Module Slots Quantity
4
Spanning Tree Protocol
Yes
Switching Capacity
104 Gbit/s
Total Power Over Ethernet Poe Budget
384 W
Vlan Support
Yes
