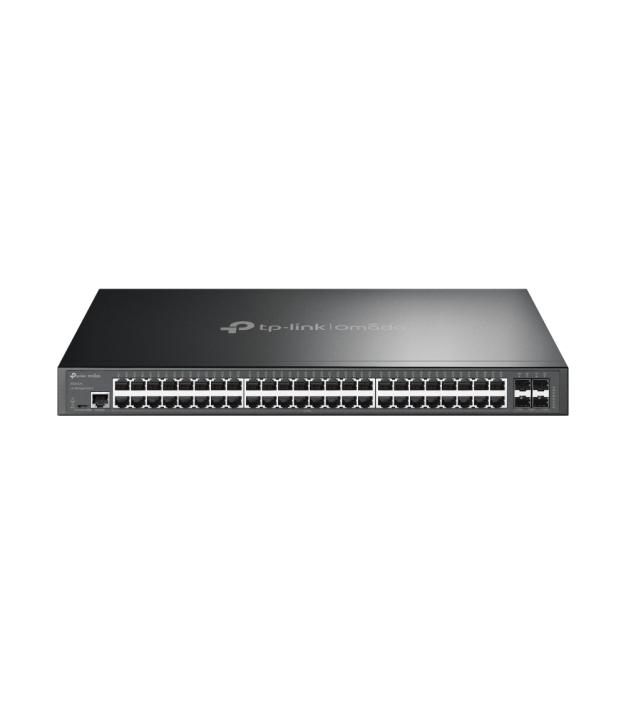

Switch, TP-LINK, Omada, TL-SG3452X, Type L2+, Rack, 48x10Base-T / 100Base-TX / 1000Base-T, 4xSFP+, 1xConsole, 1, TL-SG3452X
MPN:
SG3452X
Brand:
TP-Link
€530.73
/ incl. VAT
€438.62
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
2 in Stock
Short description
Product Description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Specifications
General
Warranty
60
Model Name
Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
A 10g Supp
Yes
Arp Inspection
Yes
Certifications
CE, FCC, RoHS
Cloud Managed
Yes
CN Code
85176200
Forwarding Rate
130.9 Mpps
Head Of Line Blocking
Yes
Heat Dissipation
111.65 BTU/h
Huawei Proprietary Mib
Yes
Igmp Proxy
Yes
Igmp Snooping
Yes
Jumbo Frames
9000
Jumbo Frames Support
Yes
Link Aggregation
Yes
Management Protocols
SNMPv1/v2c/v3, SNTP
Mib Support
RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618
Multicast Listener Discovery Snooping
Yes
Multicast Support
Yes
Fan Count
0 fan(s)
Number Of Static Routes
48
Number Of Vlans
4000
Operating Humidity
10 - 90 %
Operating Temperature Range
0 - 45 °C
Packet Buffer Memory
12 MB
Public Mib
Yes
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Queue Scheduling Algorithms
SP/Weighted Round Robin (WRR)/WRR+SP
Rack Rails
Yes
Rate Limiting
Yes
Series
Omada
Ssh Ssl Support
Yes
Static Route
Yes
System Event Log
Yes
Web Based Management
Yes
Physical
Depth
220 mm
Form Factor
1U
Height
44 mm
Width
440 mm
Colour
Black
Rack Mount Kit
Yes
Rack Mounting
Yes
Connectivity
Console Port
RJ-45/Micro-USB
Ip Mac Port Binding
Yes
Port Mirroring
Yes
Display
LED Indicators
Yes
Additional
SKU
1386226
EAN
6935364006471
Power
Input Frequency
50/60 Hz
Input Voltage
100 - 240 V
Power Connector
AC-in jack
Max Power Draw
32.72 W
Power Source
AC
PSU Included
Yes
Features
Access Control List Acl
Yes
Bpdu Filtering Protection
Yes
Broadcast Storm Control
Yes
Configuring Location Settings
Yes
Flow Control Support
Yes
Loop Protection
Yes
Switch Layer
L2+
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Managed
Virtual Lan Features
Private VLAN/Tagged VLAN/VLAN mapping/Voice VLAN
Battery & Security
Authentication
Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Authentication Type
AAA, RADIUS, TACACS+
Password Protection
Yes
Static Port Security
Yes
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
48
Basic Switching Rj 45 Ethernet Ports Type
Gigabit Ethernet (10/100/1000)
Dhcp Features
DHCP client/DHCP relay/DHCP server
Garp Vlan Registration Protocol Gvrp
Yes
Ipv4 Ipv6 Features
IPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 Telnet/IPv6 tracert
Ipv4 Routes
48
Ipv6 Routes
48
Mac Address Filtering
Yes
Mac Address Table
16000 entries
Networking Standards
IEEE 802.1D/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.3ad
Power Over Ethernet Poe
No
Sfp Module Slots Quantity
4
Spanning Tree Protocol
Yes
Switching Capacity
176 Gbit/s
Vlan Support
Yes
