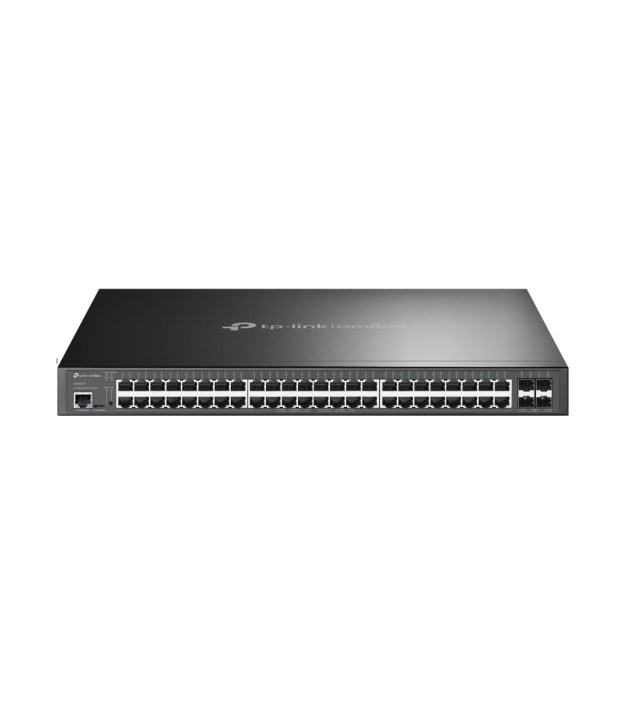

Switch, TP-LINK, Omada, TL-SG3452XP, Type L2+, Rack, 48x10Base-T / 100Base-TX / 1000Base-T, 4xSFP+, 1, 1, PoE+ ports 48, 500 Watts, TL-SG3452XP

MPN: TL-SG3452XP Brand: TP-Link

€1,111.83 / incl. VAT

€918.87 / excl. VAT

This product is currently out of stock. Subscribe to back in stock notification.

Short description

Return Policy

Delivery Information

Have questions? Expert help just one click away Contact Us

Product Description

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

4× 10 Gbps SFP+ slots
48× Gigabit 802.3af/at PoE+ ports
500 W total PoE budget with up to 30 W PoE output per port*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
ERPS supports rapid protection and recovery in a ring topology
Durable metal casing and rack-mountable design

Specifications

General

Warranty 60

Model Name TL-SG3452XP

A 10g Supp Yes

Arp Inspection Yes

Certifications CE, FCC, RoHS

Cloud Managed Yes

Forwarding Rate 130.9 Mpps

Head Of Line Blocking Yes

Heat Dissipation 2169.2 BTU/h

Igmp Snooping Yes

Jumbo Frames 9000

Jumbo Frames Support Yes

Link Aggregation Yes

Multicast Support Yes

Fan Count 3 fan(s)

Operating Humidity 10 - 90 %

Packet Buffer Memory 12 MB

QoS Support Quality of Service prioritises camera stream traffic on the network. Yes

Rate Limiting Yes

Reset Button Yes

Series Omada

Ssh Ssl Support Yes

Store And Forward Yes

System Event Log Yes

Web Based Management Yes

Physical

Depth 330 mm

Form Factor 1U

Height 44 mm

Width 440 mm

Colour Black

Rack Mounting Yes

Connectivity

Console Port RJ-45/Micro-USB

Ip Mac Port Binding Yes

Port Mirroring Yes

Display

LED Indicators Yes

Additional

SKU 1390005

EAN 6935364006495

Power

Input Frequency 50/60 Hz

Input Voltage 100 - 240 V

Power Connector AC-in jack

Max Power Draw 635.7 W

Power Over Ethernet Poe Power Per Port 30 W

Power Source AC

PSU Included Yes

Features

Access Control List Acl Yes

Bpdu Filtering Protection Yes

Broadcast Storm Control Yes

Configuring Location Settings Yes

Flow Control Support Yes

Switch Layer L2+

KVM Type KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort. Managed

Battery & Security

Authentication Auto VLAN, Guest VLAN

Static Port Security Yes

Networking

Basic Switching Rj 45 Ethernet Ports Quantity 48

Basic Switching Rj 45 Ethernet Ports Type Gigabit Ethernet (10/100/1000)

Dhcp Features DHCP client/DHCP relay/DHCP server

Mac Address Filtering Yes

Mac Address Table 16000 entries

Networking Standards IEEE 802.1D/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z

Power Over Ethernet Plus Poe Ports Quantity 48

Power Over Ethernet Poe Yes

Sfp Module Slots Quantity 4

Spanning Tree Protocol Yes

Switching Capacity 176 Gbit/s

Total Power Over Ethernet Poe Budget 500 W

Vlan Support Yes
