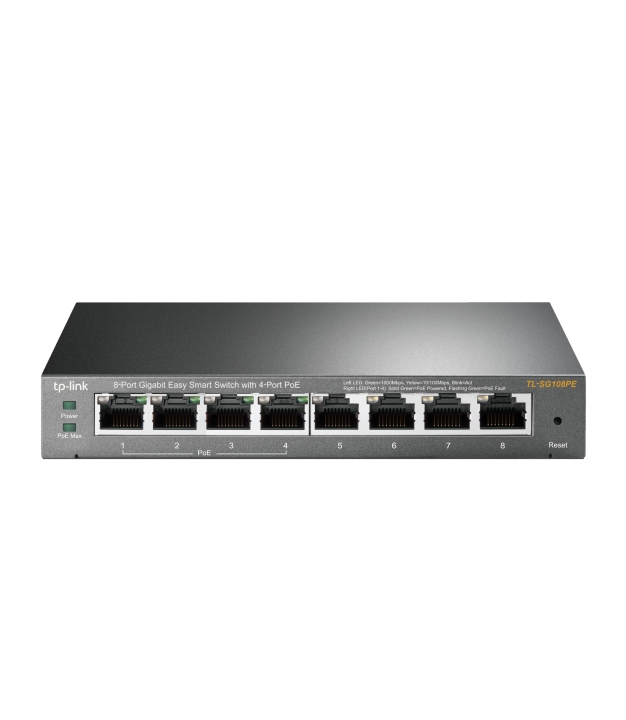

Switch, TP-LINK, PoE ports 4, TL-SG108PE
MPN:
TL-SG108PE
Brand:
TP-Link
€87.33
/ incl. VAT
€72.17
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
PoE Switches for Your Ultra Convenience
8-Port Gigabit Easy Smart Switch with 4-Port PoE
Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Management Made Easy
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
8-Port Gigabit Easy Smart Switch with 4-Port PoE
Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Management Made Easy
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Specifications
General
Warranty
60
Model Name
8-Port Gigabit Easy Smart Switch with 4-Port PoE
A 10g Supp
No
Certifications
FCC, CE, RoHS
Forwarding Rate
11.9 Mpps
HS Code
85176990
Heat Dissipation
256.19 BTU/h
Igmp Snooping
Yes
Input Current
1.25 A
Jumbo Frames
15000
Jumbo Frames Support
Yes
Link Aggregation
Yes
Model
TL-SG108PE
Number Of Vlans
32
Operating Humidity
10 - 90 %
Operating Temperature Range
0 - 40 °C
Packet Buffer Memory
1.5 MB
Packet Forwarding Rate
11900000 pps
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Rate Limiting
Yes
Store And Forward
Yes
Web Based Management
Yes
Physical
Depth
101 mm
Height
25 mm
Width
158 mm
Colour
Black
Connectivity
Gigabit Ethernet Ports Quantity
8
Port Mirroring
Yes
Display
LED Indicators
Activity, Link, PoE, Power, Speed, Status
Additional
SKU
1189535
EAN
6935364094744
Power
Input Frequency
50 Hz
Input Voltage
220 V
Input Voltage
48 V
Max Power Draw
65.2 W
Power Over Ethernet Poe Power Per Port
15.4 W
Power Source
DC
PSU Included
Yes
Features
Auto Mdi Mdi X
Yes
Auto Negotiation
Yes
Broadcast Storm Control
Yes
Loop Protection
Yes
Switch Layer
L2
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Managed
Virtual Lan Features
Port-based VLAN
Compatibility
Cable Types Supported
Cat3, Cat4, Cat5, Cat5e, Cat6
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
8
Basic Switching Rj 45 Ethernet Ports Type
Gigabit Ethernet (10/100/1000)
Mac Address Table
4000 entries
Networking Standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Power Over Ethernet Plus Poe Ports Quantity
4
Power Over Ethernet Poe
Yes
Power Over Ethernet Poe Ports Quantity
4
Switching Capacity
16 Gbit/s
Total Power Over Ethernet Poe Budget
64 W
Vlan Support
Yes
