Special offer

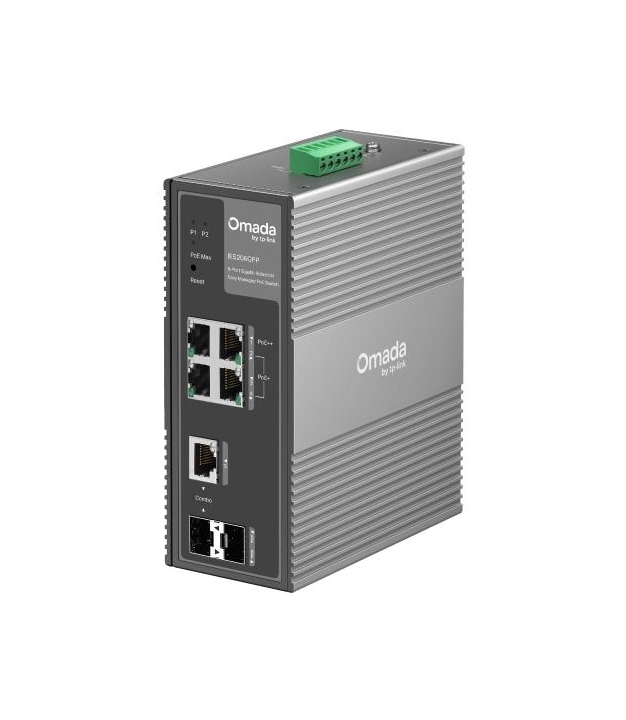

Switch, TP-LINK, Switch type Managed, Rack mounting Yes, 4xRJ-45 ports, RJ-45 Ports Type Gigabit Ethernet (10/100/1000), 1xCombo SFP ports quantity, 1xSFP module slots quantity, Power over Ethernet (PoE) Yes, 3xPower over Ethernet plus (PoE+) ports quanti
MPN:
IES206GPP
Brand:
TP-Link
€261.52
/ incl. VAT
€216.13
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
2 in Stock
Short description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Industrial-Grade Protection Built for Harsh Environments
Enhanced Networking Stability and Security
Easy Operation and Maintenance with Omada’s Free Cloud Management
- 4× Gigabit RJ45 Ports (1× PoE++, 3× PoE+)
- 1× Gigabit Combo RJ45/SFP Slot, 1× Gigabit SFP Slot
- 120W Power Budget* with up to 60W for PoE++ Port
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: Up to 820ft (250m) PoE,** VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
Specifications
General
Warranty
60
A 10g Supp
No
Certifications
FCC, CE, RoHS
Fanless
Yes
Forwarding Rate
8.93 Mpps
Igmp Snooping
Yes
Jumbo Frames
15000
Jumbo Frames Support
Yes
Link Aggregation
Yes
Model
IES206GPP
Multicast Support
Yes
Operating Humidity
5 - 95 %
Store And Forward
Yes
Physical
Depth
120 mm
Height
60 mm
Width
155 mm
Din Rail Mounting
Yes
Colour
Black
Rack Mounting
Yes
Wall Mountable
Yes
Connectivity
Port Mirroring
Yes
Additional
SKU
1454398
EAN
1210002602051
Features
Auto Mdi Mdi X
Yes
Auto Negotiation
Yes
Broadcast Storm Control
Yes
Flow Control Support
Yes
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Managed
Power
Dc Input Voltage
12 - 57 V
Power Over Ethernet Poe Power Per Port
30 W
Power Source
DC/PoE
Redundant Power Supply Rps Support
Yes
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
4
Basic Switching Rj 45 Ethernet Ports Type
Gigabit Ethernet (10/100/1000)
Combo Sfp Ports Quantity
1
Dhcp Features
DHCP client
Ethernet Data Rates
10, 100, 1000 Mbit/s
Mac Address Table
8000 entries
Networking Standards
IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1w/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3x
Power Over Ethernet 4ppoe Ports Quantity
1
Power Over Ethernet Plus Poe Ports Quantity
3
Power Over Ethernet Poe
Yes
Power Over Ethernet Poe Type Supported
PoE+/PoE++ (4PPoE)
Sfp Module Slots Quantity
1
Spanning Tree Protocol
Yes
Switching Capacity
12 Gbit/s
Total Power Over Ethernet Poe Budget
120 W
