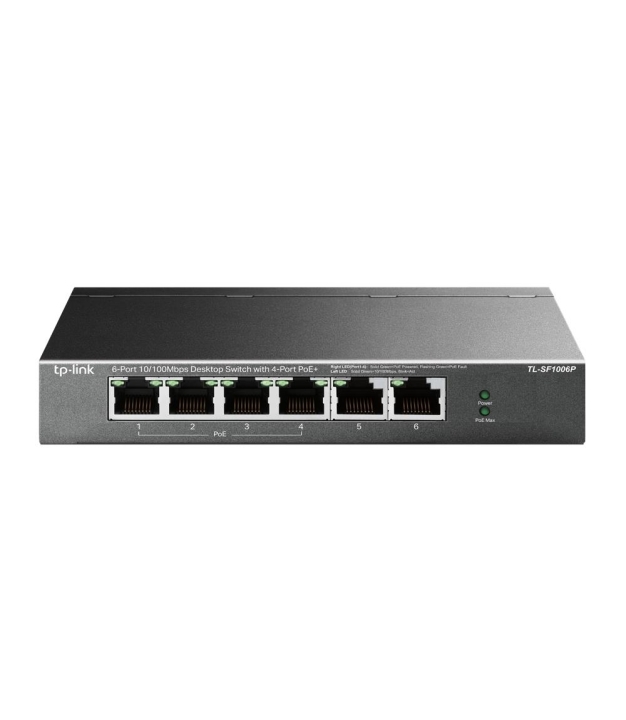

TP-Link TL-SF1006P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

MPN: TL-SF1006P Brand: TP-Link
€63.02 / incl. VAT
€52.08 / excl. VAT
This product is currently out of stock. Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Delivery Information
Have questions? Expert help just one click away Contact Us

Product Description

Professional High-Power Switch with 4 PoE+ Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m

Dedicated 4-Poart PoE+ Switch (67 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Ideal for IP Surveillance—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

Intelligent Power Management
When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing
The interior components of TL-SF1006P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1006P delivers switching performance you can depend on.

Specifications

General
Warranty 60
Model Name TL-SF1006P
A 10g Supp No
Certifications FCC, CE, RoHS
Certifications CE/Federal Communications Commission (FCC)/RoHS
Fanless Yes
Forwarding Rate 0.8928 Mpps
HS Code 85176990
Heat Dissipation 252.34 BTU/h
Input Current 1.31 A
Jumbo Frames 2000
Jumbo Frames Support Yes
Operating Humidity 10 - 90 %
Stackable No
Store And Forward Yes
Physical
Depth 101 mm
Height 25 mm
Width 158 mm
Colour Black
Rack Mounting No
Connectivity
Copper Ethernet Cabling Technology 100BASE-T/100BASE-TX/10BASE-T
Print
Full Duplex Yes
Half Duplex Yes
Display
LED Indicators Yes
Additional
SKU 1310597
EAN 6935364030933
Power
AC Adapter Included Yes
Input Frequency 50 Hz
Input Voltage 220 V
Dc Input Voltage 53.5 V
Max Power Draw 74 W
Power Source DC/PoE
PSU Included Yes
Features
Auto Mdi Mdi X Yes
Auto Negotiation Yes
Flow Control Support Yes
KVM Type KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort. Unmanaged
Compatibility
Cable Types Supported Cat3/Cat4/Cat5/Cat5e
Networking
Basic Switching Rj 45 Ethernet Ports Quantity 6
Basic Switching Rj 45 Ethernet Ports Type Fast Ethernet (10/100)
Mac Address Auto Aging Supported Yes
Mac Address Auto Learning Supported Yes
Mac Address Table 2000 entries
Networking Standards IEEE 802.3af/IEEE 802.3at
Power Over Ethernet Plus Poe Ports Quantity 4
Power Over Ethernet Poe Yes
Switching Capacity 1.2 Gbit/s
Total Power Over Ethernet Poe Budget 67 W
