Switch, UBIQUITI, USW-24, Type L2, 24x10Base-T / 100Base-TX / 1000Base-T, 1xSFP, USW-24
MPN:
USW-24
Brand:
Ubiquiti
€389.92
/ incl. VAT
€322.25
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description

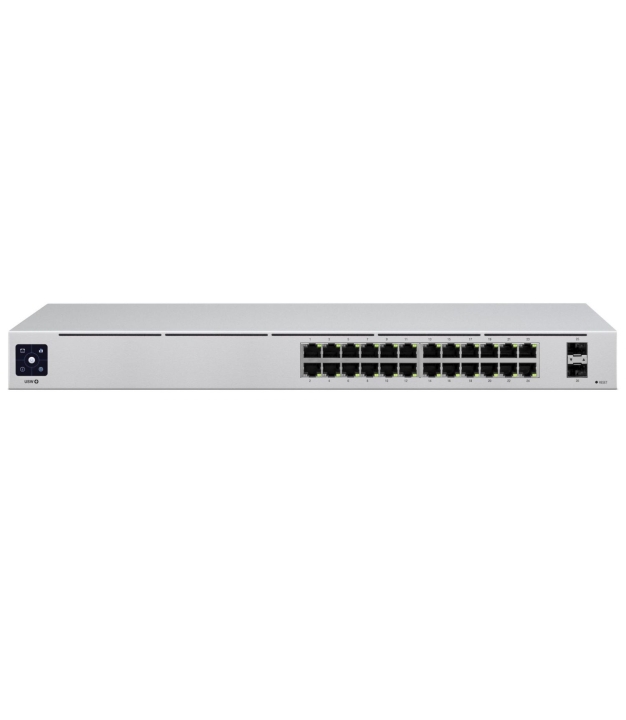

UniFi Switch 24 is a fully managed Layer 2 switch with (24) Gigabit Ethernet ports and (2) Gigabit SFP ports for fiber connectivity
The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3 touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network application with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.
- (24) Gigabit Ethernet Ports
- (2) Gigabit SFP Ports
- 1.3 color touchscreen for status information
- Managed with UniFi Network application
- 1U rackmountable (kit included)
Specifications
General
Warranty
12
Model Name
USW-24
A 10g Supp
No
Certifications
CE, FCC, IC
HS Code
85176990
Operating Humidity
10 - 90 %
Stackable
Yes
Web Based Management
Yes
Physical
Weight
2.700000
Depth
200 mm
Height
43.7 mm
Width
442.4 mm
Colour
Silver
Rack Mounting
Yes
Additional
SKU
4078037
EAN
810010071385
Power
Input Frequency
50 - 60 Hz
Input Voltage
100 - 240 V
Power Connector
AC-in jack
Typical Power Draw
Typical board power (W) is the power draw under normal gaming load. Use it to estimate electricity cost and to size cooling. Peak transient spikes can be 20-30 percent higher, which is why PSU recommendations leave a buffer.
120 W
Power Source
AC
PSU Included
Yes
Features
Switch Layer
L2
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Managed
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
24
Basic Switching Rj 45 Ethernet Ports Type
Gigabit Ethernet (10/100/1000)
Ethernet Data Rates
10, 100, 1000 Mbit/s
Networking Standards
IEEE 802.3af/IEEE 802.3at
Power Over Ethernet Poe
No
Sfp Module Slots Quantity
2
