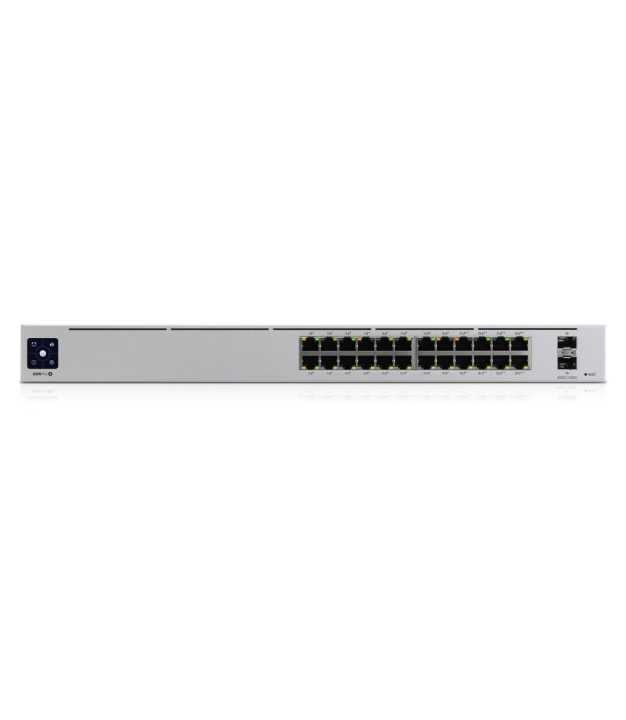

Switch, UBIQUITI, USW-Pro-24-PoE, Type L3, Desktop/pedestal, Rack, 24x10Base-T / 100Base-TX / 1000Base-T, 2xSFP+, PoE ports 24, PoE+ ports 16, 400 Watts, USW-PRO-24-POE
MPN:
USW-PRO-24-POE
Brand:
Ubiquiti
€835.20
/ incl. VAT
€690.25
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
25 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3 touchscreen display allows easy monitoring and quick troubleshooting.
Specifications
General
Warranty
12
Model Name
USW-Pro-24-PoE
A 10g Supp
Yes
Certifications
CE, FCC, IC
CN Code
85176200
Forwarding Rate
65.472 Mpps
HS Code
85176990
Igmp Snooping
Yes
Jumbo Frames Support
Yes
Link Aggregation
Yes
Number Of Vlans
1000
Operating Humidity
10 - 90 %
Packet Buffer Memory
2 MB
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Rate Limiting
Yes
Reset Button
Yes
Static Route
Yes
System Event Log
Yes
Web Based Management
Yes
Physical
Weight
4.300000
Depth
285.4 mm
Form Factor
1U
Height
43.7 mm
Width
442.4 mm
Colour
Silver
Rack Mounting
Yes
Display
Display Type
LCM
LED Indicators
Activity/Link/PoE/Speed/System
Print
Full Duplex
Yes
Connectivity
Port Mirroring
Yes
Additional
SKU
1282411
EAN
817882027649
Power
Input Frequency
50 - 60 Hz
Input Voltage
100 - 240 V
Power Connector
AC-in jack
Max Power Draw
450 W
Power Over Ethernet Poe Power Per Port
64 W
Power Source
AC
PSU Included
Yes
Redundant Power Supply Rps Support
Yes
Features
Broadcast Storm Control
Yes
Flow Control Support
Yes
Switch Layer
L2/L3
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Managed
Battery & Security
Authentication Type
IEEE 802.1x, RADIUS
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
24
Basic Switching Rj 45 Ethernet Ports Type
Gigabit Ethernet (10/100/1000)
Dhcp Features
DHCP relay/DHCP server/DHCP snooping
Ipv4 Routes
64
Mac Address Table
16000 entries
Networking Standards
IEEE 802.3af/IEEE 802.3at
Power Over Ethernet 4ppoe Ports Quantity
8
Power Over Ethernet Plus Poe Ports Quantity
16
Power Over Ethernet Poe
Yes
Sfp Module Slots Quantity
2
Switching Capacity
88 Gbit/s
Throughput
44000 Mpps
Total Power Over Ethernet Poe Budget
400 W
Vlan Support
Yes
