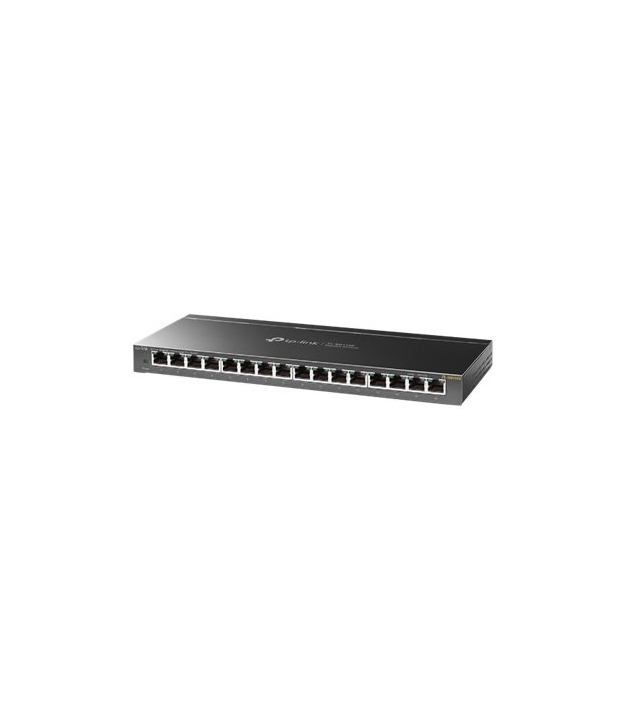

TP-LINK 16-Port Gigabit Easy Smart
MPN:
TL-SG116E
Brand:
TP-Link
€111.62
/ incl. VAT
€92.25
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
TP-LINK 16-Port Gigabit Easy Smart Switch 16 Gigabit RJ45 Ports MTU/Port/Tag-based VLAN QoS IGMP Snooping
Specifications
General
A 10g Supp
No
Certifications
FCC, CE, RoHS
Forwarding Rate
23.81 Mpps
HS Code
85176990
Heat Dissipation
31.68 BTU/h
Igmp Snooping
Yes
Input Current
1 A
Jumbo Frames
10000
Jumbo Frames Support
Yes
Link Aggregation
Yes
Number Of Queues
4
Number Of Vlans
32
Operating Temperature Range
0 - 40 °C
Packet Buffer Memory
4.1 MB
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Rate Limiting
Yes
Store And Forward
Yes
Physical
Depth
111.7 mm
Height
25.4 mm
Width
286 mm
Cable Length Detection
Yes
Rack Mounting
No
Connectivity
Copper Ethernet Cabling Technology
10BASE-T, 100BASE-TX, 1000BASE-T
Gigabit Ethernet Ports Quantity
16
Port Mirroring
Yes
Print
Full Duplex
Yes
Display
LED Indicators
Yes
Additional
Part Number
TL-SG116E
SKU
1260698
EAN
6935364084301
Power
AC Adapter Included
Yes
Input Voltage
12 V
Max Power Draw
9.19 W
Power Source
DC
PSU Included
Yes
Features
Auto Mdi Mdi X
Yes
Auto Negotiation
Yes
Broadcast Storm Control
Yes
Loop Protection
Yes
Switch Layer
L2
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Unmanaged
Virtual Lan Features
Tagged VLAN, Protocol-based VLAN
Compatibility
Cable Types Supported
Cat3, Cat4, Cat5, Cat5e, Cat6
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
16
Basic Switching Rj 45 Ethernet Ports Type
Gigabit Ethernet (10/100/1000)
Mac Address Table
8000 entries
Networking Standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Power Over Ethernet Poe
No
Switching Capacity
32 Gbit/s
Vlan Support
Yes
