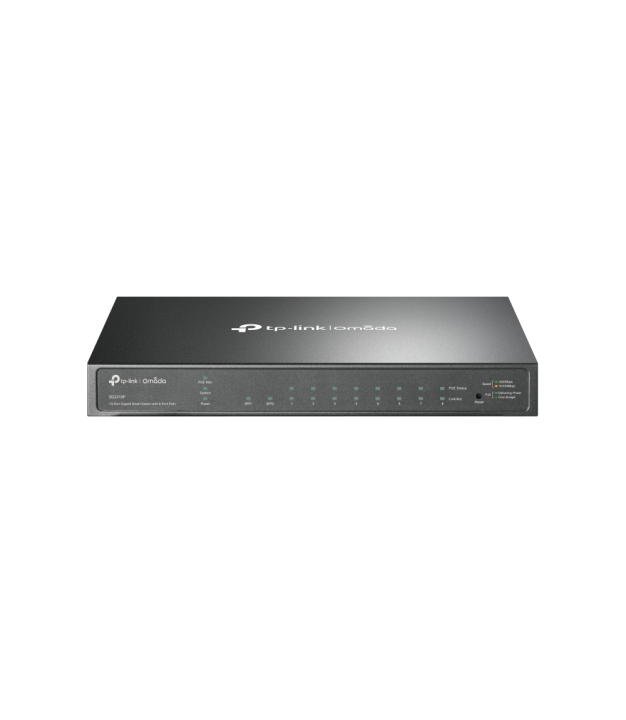

TP-LINK Omada 8-Port Gigabit Smart Sw
MPN:
SG2210P
Brand:
TP-Link
€141.86
/ incl. VAT
€117.24
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
2 in Stock
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Specifications
General
Warranty
24
Model Name
Omada 10-Port Gigabit Smart Switch with 8-Port PoE+
A 10g Supp
No
Arp Inspection
Yes
Certifications
CE, FCC, RoHS
Cloud Managed
Yes
CN Code
85176200
Forwarding Rate
14.88 Mpps
Igmp Snooping
Yes
Jumbo Frames
9000
Jumbo Frames Support
Yes
Link Aggregation
Yes
Multicast Listener Discovery Snooping
Yes
Multicast Support
Yes
Operating Humidity
10 - 90 %
Operating Temperature Range
0 - 40 °C
Packet Buffer Memory
4.1 MB
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Rate Limiting
Yes
Series
Omada
Ssh Ssl Support
Yes
System Event Log
Yes
Web Based Management
Yes
Physical
Depth
126 mm
Height
26 mm
Width
209 mm
Colour
Black
Connectivity
Ip Mac Port Binding
Yes
Port Mirroring
Yes
Display
LED Indicators
Yes
Additional
Part Number
SG2210P
SKU
1413628
EAN
6935364030698
Power
Input Frequency
50/60 Hz
Input Voltage
100 - 240 V
Power Connector
DC-in jack
Max Power Draw
77.8 W
Power Source
DC/PoE
PSU Included
Yes
Features
Access Control List Acl
Yes
Auto Mdi Mdi X
Yes
Auto Negotiation
Yes
Bpdu Filtering Protection
Yes
Broadcast Storm Control
Yes
Configuring Location Settings
Yes
Flow Control Support
Yes
Switch Layer
L2/L2+
KVM Type
KVM switch class . USB, PS/2, IP/CAT5 (over network), HDMI/DisplayPort.
Managed
Software
Firmware Upgradeable
Yes
Battery & Security
Authentication
MAC-based authentication, Port-based authentication
Static Port Security
Yes
Networking
Basic Switching Rj 45 Ethernet Ports Quantity
8
Basic Switching Rj 45 Ethernet Ports Type
Gigabit Ethernet (10/100/1000)
Ipv4 Ipv6 Features
Dual stack IPv4/IPv6
Mac Address Table
8000 entries
Networking Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Power Over Ethernet Poe
Yes
Sfp Module Slots Quantity
2
Spanning Tree Protocol
Yes
Switching Capacity
20 Gbit/s
Vlan Support
Yes
