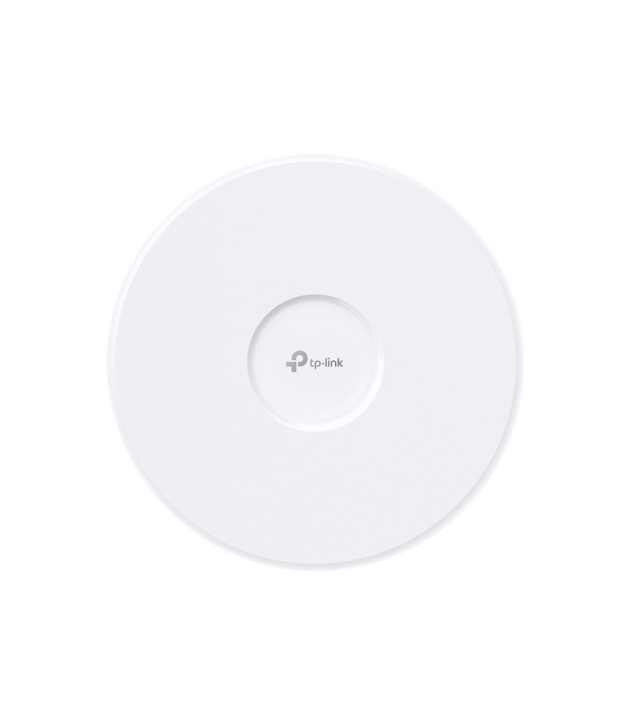

TP-LINK Omada BE9300 Ceiling Mount AP
MPN:
EAP772
Brand:
TP-Link
€317.29
/ incl. VAT
€262.22
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Ultra-Thin Enterprise WiFi 7 Access Point
- Next-Gen WiFi 7
- Wi-Fi Speeds up to 9214 Mbps
- Multi-Link Operation (MLO)
- 1× 2.5G RJ45 Port
- PoE Power
- Ultra-Thin Design
- Centralized Cloud Management
- Omada Mesh Technology
Ultra-Thin Design for Flexible Deployment
The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.
Boosted Network Security
- Secure Guest Network with up to 24 SSIDs
- Boost Your Business with SMS Login
- WPA3 for Worry-Free Open Public Networks
- Rogue AP Detection
- Next-Gen WiFi 7
- Wi-Fi Speeds up to 9214 Mbps
- Multi-Link Operation (MLO)
- 1× 2.5G RJ45 Port
- PoE Power
- Ultra-Thin Design
- Centralized Cloud Management
- Omada Mesh Technology
Ultra-Thin Design for Flexible Deployment
The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic.
Boosted Network Security
- Secure Guest Network with up to 24 SSIDs
- Boost Your Business with SMS Login
- WPA3 for Worry-Free Open Public Networks
- Rogue AP Detection
Specifications
General
Warranty
60
Model Name
EAP772
Airtime Fairness Atf
Yes
Beamforming
Yes
Certifications
CE, FCC, RoHS, IC
Max Data Transfer Rate
9300 Mbit/s
Max Concurrent Users
380 user(s)
Operating Humidity
10 - 90 %
Placement
Ceiling, Wall
QoS Support
Quality of Service prioritises camera stream traffic on the network.
Yes
Web Based Management
Yes
Connectivity
Bluetooth
Yes
Bluetooth Version
Bluetooth version controls range, throughput and the supported audio codecs. 5.0+ doubles range and bandwidth vs 4.x; 5.3 adds LE Audio with the higher-quality LC3 codec. Both endpoints must speak the same version to use the new features.
5.2
LAN Ports
1
Physical
Depth
220 mm
Height
32.5 mm
Width
220 mm
Colour
White
Processor
A 5 Ghz
Yes
A 6 Ghz
Yes
Maximum Data Transfer Rate 2 4 Ghz
574 Mbit/s
Maximum Data Transfer Rate 5 Ghz
2880 Mbit/s
Maximum Data Transfer Rate 6 Ghz
5760 Mbit/s
Maximum Tx Power 2 4 Ghz
Yes
Display
LED Indicators
Yes
Additional
Part Number
EAP772
SKU
1420709
EAN
8885020623055
Power
AC Adapter Included
No
Features
Access Control List Acl
Yes
Service Set Identifier Ssid Features
Multiple SSIDs
Compatibility
Number Of Ssid Supported
24
Battery & Security
Remote Authentication Dial In User Service Radius
Yes
Security Protocols
SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Networking
Antenna Type
Internal
Ethernet Data Rates
2500 Mbit/s
Mac Address Filtering
Yes
MIMO
Yes
Mimo Type
Multi User MIMO
Networking Standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Vlan Support
Yes
