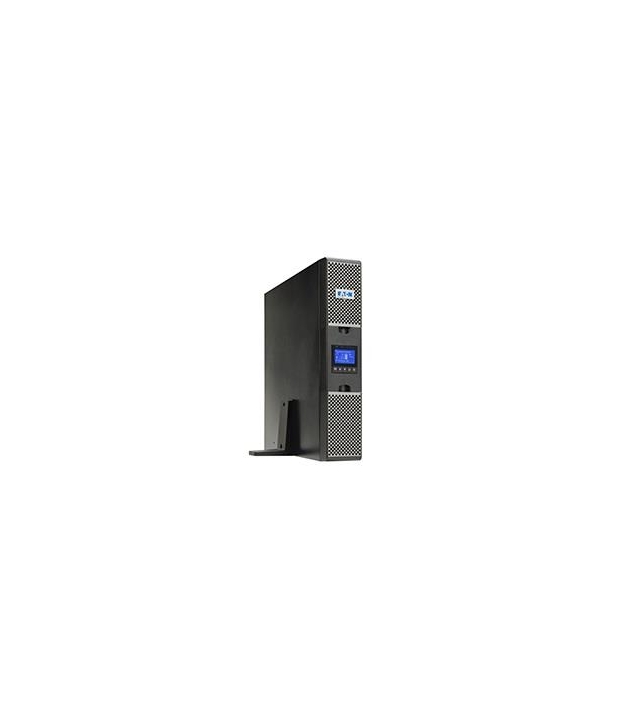

UPS, EATON, 1500 Watts, 1500 VA, OnLine DoubleConvertion, Desktop/pedestal, Rack, 9PX1500IRTN
MPN:
9PX1500IRTN
Brand:
EATON
AC Outlets:
8 AC outlet(s)
Power Output:
1500 W
€2,417.75
/ incl. VAT
€1,998.14
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
1 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
Reliable. Versatile. Powerful. Efficient. With double-conversion topology for constant power conditioning and up to 93 percent efficiency, the Eaton 9PX 700-3000 VA models support your overall goal of business continuity. It’s built for scalable deployment, features a graphical LCD for local status updates and integrates with virtualized environments.
Specifications
General
HS Code
85078000
Rack Capacity
2U
Safety Features
IEC/EN 62040-1, UL 1778, CSA 22.2
Sustainability Certs
ENERGY STAR
Typical Backup Time At Full Load
5 min
Typical Backup Time At Half Load
14 min
Display
Display Type
LCD
Connectivity
USB 2.0 Ports (Rear)
1
USB Port
Yes
Rs 232 Ports
1
Serial Interface
Yes
Serial Interface Type
RS-232
Battery & Security
Battery Technology
Li-Ion: standard. Li-Po: thinner, lighter. LiFePO4: longer cycle life.
Sealed Lead Acid (VRLA)
Hot Swap Battery
Yes
Power
AC Outlet Types
C13 coupler
Input Frequency
40/70 Hz
Max Input Voltage
276 V
Min Input Voltage
176 V
Max Output Voltage
240 V
Min Output Voltage
200 V
Output Power (VA)
1.5 kVA
Protection Features
OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), OPP (Over-Power Protection) and SCP (Short-Circuit Protection) protect against voltage spikes, over-current and short circuits.
Battery discharge
UPS Topology
Double-conversion (Online)
Output Frequency
50/60 Hz
Power Factor
1
Waveform
Pure sine
Efficiency
92.5 %
Input Phases
1
Nominal Input Voltage
230 V
Nominal Output Voltage
230 V
Power Plug
C14 coupler
Features
Auto Battery Test
Yes
LED Indicators
Yes
Rack Mount Kit
Yes
Management Card Included
Yes
Physical
Weight
18.900000
Depth
450 mm
Form Factor
Rackmount/Tower
Height
86.5 mm
Width
440 mm
Noise Level
dB(A) of operational noise. Under 30 dB is very quiet (whisper level).
35 dB
Colour
Black
Additional
Certifications
IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
Warranty
24
SKU
2689748
EAN
743172081421
