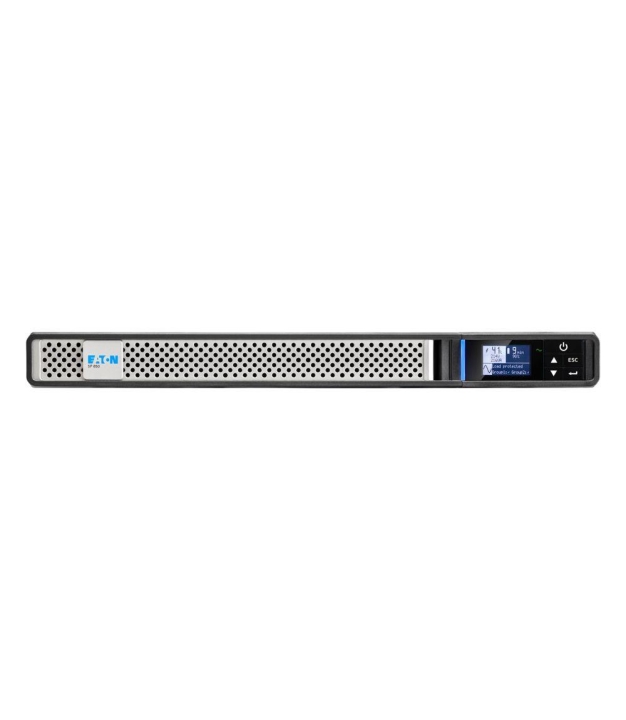

UPS, EATON, 520 Watts, 650 VA, Wave form type Sinewave, LineInteractive, Phase 1phase, 5P650IRNG2
MPN:
5P650IRNG2
Brand:
EATON
AC Outlets:
4 AC outlet(s)
Power Output:
520 W
€877.01
/ incl. VAT
€724.80
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
1 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Specifications
General
Model
5P650IRNG2
Certifications
Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)/RoHS
Heat Dissipation
461 BTU/h
Quick Install Guide
Yes
Typical Backup Time At Half Load
7 min
Display
Display Type
LCD
Connectivity
USB Port
Yes
Rs 232 Ports
1
Serial Interface
Yes
Serial Interface Type
RS-232
Serial Ports Quantity
1
Usb Port Type
USB Type-B
Battery & Security
Battery Capacity
Battery capacity (Wh or mAh) is the total energy the battery stores. For comparing devices the Wh value is the meaningful one (mAh requires knowing the voltage too). Bigger capacity adds weight and bulk; mid-range notebooks land at 50-70 Wh.
9000 mAh
Battery Technology
Li-Ion: standard. Li-Po: thinner, lighter. LiFePO4: longer cycle life.
Sealed Lead Acid (VRLA)
Battery Voltage
6 V
Hot Swap Battery
Yes
Battery Cells
2
Power
AC Outlet Types
C13 coupler
Input Frequency
47/70 Hz
Max Input Voltage
294 V
Min Input Voltage
150 V
Max Output Voltage
240 V
Min Output Voltage
200 V
Output Power (VA)
0.65 kVA
UPS Topology
Line-Interactive
Output Frequency
50/60 Hz
Power Factor
0.8
Waveform
Sine
Efficiency
97 %
Input Phases
1
Output Phases
1
Automatic Voltage Regulation Avr
Yes
Power Plug
C14 coupler
Features
Operating Altitude
0 - 3000 m
Rack Mount Kit
Yes
Physical
Weight
8.680000
Depth
361 mm
Form Factor
Rackmount
Height
43.2 mm
Width
438 mm
Noise Level
dB(A) of operational noise. Under 30 dB is very quiet (whisper level).
35 dB
Colour
Black, Silver
Operating Humidity
0 - 90 %
Additional
Certifications
IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, UL 1778, CSA-C22.2, CE, UKCA, Cm, Ukr, KCC, cTUVus, BIS
Warranty
24
SKU
47278567
EAN
3553340710384
Networking
Network Card Slot
Yes
