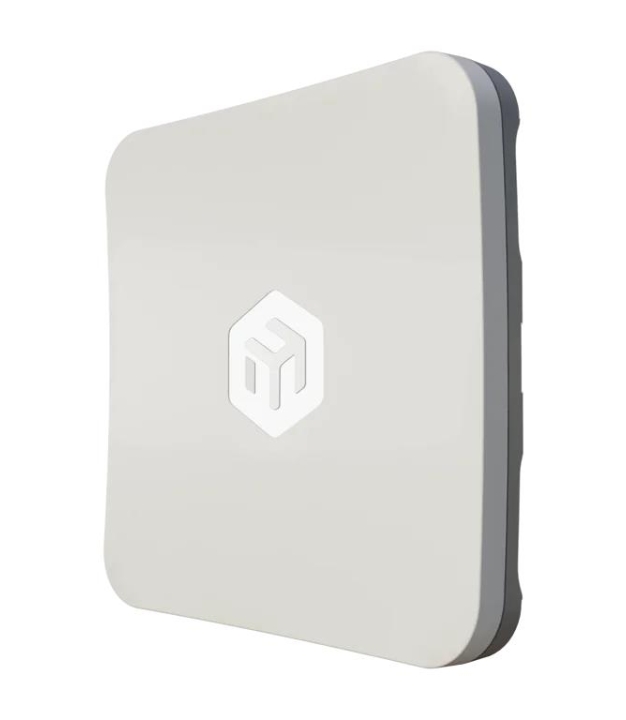

Wireless Device, MIKROTIK, 1200 Mbit/s, 1xLAN ports, SXTSQ-5AXD
€68.26
€56.41 / excl. VAT

Wireless Device, MIKROTIK, 1200 Mbit/s, 1xLAN ports, SXTSQ-5AXD

MPN: SXTSQ-5AXD Brand: MikroTik
€68.26 / incl. VAT
€56.41 / excl. VAT
In 2 Business Days
29 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions? Expert help just one click away Contact Us

Product Description

A compact outdoor Wi-Fi 6 CPE with a powerful 16 dBi antenna, AP mode, and multiple mounting options – perfect for masts, poles, or rooftop deployments.

ARM dual-core + Wi-Fi 6
Despite the upgrade to Wi-Fi 6 and a modern ARM-based dual-core CPU, this unit keeps the same price point as our previous Wi-Fi 5 model — making it one of the best-value weatherproof CPEs on the market.

Weatherproof
The enclosure can withstand all sorts of unpredictable weather hazards, and it features slots for directly attaching a hose clamp in three different mounting positions, including support for horizontal railings — ideal for masts and poles in rooftop or tower deployments.

3 to 10+ km
Field-tested up to 3 km in high-interference, urban scenarios. Designed with the same trusted long-range architecture as previous SXT models — capable of 10+ km links in line-of-sight deployments.

Pair a mANTBox ax 15s as your uplink with several SXTsq 5 ax units - and you've got everything you need to become the village ISP! No need to wait for large ISPs to reach you.

With RouterOS license level 4, the SXTsq 5 ax isn’t just a client — it can also be configured as a powerful access point, giving you more flexibility in planning your wireless infrastructure. And thanks to its compact square shape, it fits neatly into even the most space-sensitive deployments.


Specifications

General
Warranty 12
IP Rating IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion. IP55
Model Name SXTSQ-5AXD
Certifications CE, FCC, IC, EAC, ROHS
Flash Memory 128 MB
Max Data Transfer Rate 1200 Mbit/s
Model SXTSQ-5AXD
Operating Humidity -40 - 70 %
Processor
A 5 Ghz Yes
A 6 Ghz Yes
Built-in Processor Yes
Maximum Tx Power 2 4 Ghz No
Base Clock Speed Base clock speed (GHz) is the guaranteed sustained frequency the CPU runs at under standard load. It sets the lower bound of performance. Higher base clock helps in software that cannot reach the boost frequency for long (long compilations, sustained simu 800 MHz
Connectivity
LAN Ports 1
Physical
Colour White
Additional
SKU 1441637
EAN 4752224009494
Power
Input Voltage 12 - 28 V
Max Power Draw 6 W
Memory
RAM RAM (Random Access Memory) is the system's working memory where active applications and the operating system live. More RAM means smoother multitasking and bigger files can be edited without swapping to disk. 16 GB is the comfortable minimum for modern sy 256 MB
Operating System
Operating System RouterOS
Networking
Antenna Gain Level Max 16 dBi
Antenna Type Internal
Ethernet Data Rates 10/100/1000 Mbit/s
Networking Standards IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11n
Power Over Ethernet Poe Yes
