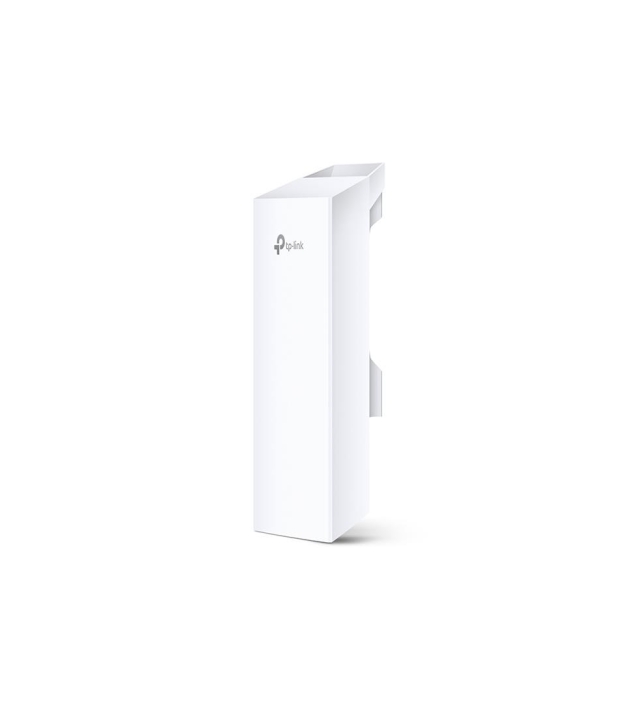

Wireless Device, TP-LINK, 300 Mbit/s, 2xLAN ports, CPE210
MPN:
CPE210
Brand:
TP-Link
€72.37
/ incl. VAT
€59.81
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Product Description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
TP-Link’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.
Enterprise Hardware
With Qualcomm Atheros level chipsets, high gain antennas and high
quality material, specially designed enclosure, and PoE power supply, CPE210 is
specially designed for outdoor use and can operate flawlessly in almost any climate,
with operating temperatures ranging from -40℃ (-40℉) to +70℃ (158℉).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain and lower noise interference
5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.
TP-Link MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be
so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user
experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily
manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery,
status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
Enterprise Hardware
With Qualcomm Atheros level chipsets, high gain antennas and high
quality material, specially designed enclosure, and PoE power supply, CPE210 is
specially designed for outdoor use and can operate flawlessly in almost any climate,
with operating temperatures ranging from -40℃ (-40℉) to +70℃ (158℉).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain and lower noise interference
5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.
TP-Link MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be
so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user
experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily
manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery,
status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
Specifications
General
Warranty
36
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IPX5
Model Name
CPE210
Certifications
CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark CE, FCC, RoHS
Dynamic Frequency Selection Dfs
Yes
Flash Memory
8 MB
Frequency Band
2.4 - 2.483 GHz
Igmp Snooping
Yes
Management Platform
Pharos Control
Max Data Transfer Rate
300 Mbit/s
Maximum Outdoor Range
5000 m
Operating Humidity
10 - 90 %
Output Current
0.25 A
Placement
Pole
Polarization
Dual polarization
Reset Button
Yes
Web Based Management
Yes
Input Frequency
50 - 60 Hz
Physical
Depth
79 mm
Height
60 mm
Width
224 mm
Colour
White
Processor
Processor Model
Qualcomm Atheros
A 5 Ghz
No
A 6 Ghz
No
Built-in Processor
Yes
Maximum Tx Power 2 4 Ghz
Yes
Processor Architecture
MIPS 74Kc
Base Clock Speed
Base clock speed (GHz) is the guaranteed sustained frequency the CPU runs at under standard load. It sets the lower bound of performance. Higher base clock helps in software that cannot reach the boost frequency for long (long compilations, sustained simu
560 MHz
Connectivity
Auto Wireless Distribution System Wds
Yes
DC-In Jack
Yes
LAN Ports
2
Wireless Isolation
Yes
Print
Automatic Channel Scanning
Yes
Display
LED Indicators
Status
Additional
SKU
1165278
EAN
6935364071677
Power
Input Voltage
100 - 240 V
Output Voltage
24 V
Features
Automatic Channel Selection
Yes
Service Set Identifier Ssid Features
SSID broadcast/SSID broadcast on/off
Universal Plug And Play
Yes
Software
Firmware Upgradeable
Yes
Memory
RAM
RAM (Random Access Memory) is the system's working memory where active applications and the operating system live. More RAM means smoother multitasking and bigger files can be edited without swapping to disk. 16 GB is the comfortable minimum for modern sy
64 MB
Battery & Security
Security Protocols
AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
Networking
Antenna Direction Type
Directional
Antenna Gain Level Max
9 dBi
Antenna Type
Internal
Mac Address Filtering
Yes
MIMO
Yes
Networking Standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Power Over Ethernet Poe
Yes
Power Over Ethernet Poe Type Supported
Passive PoE
Vlan Support
Yes
