Special offer
WRL ACCESS POINT/DAP140 TELTONIKA
MPN:
DAP140
Brand:
TELTONIKA
€79.13
/ incl. VAT
€65.40
/ excl. VAT
/ incl. VAT
/ excl. VAT
In 2 Business Days
18 in Stock
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description

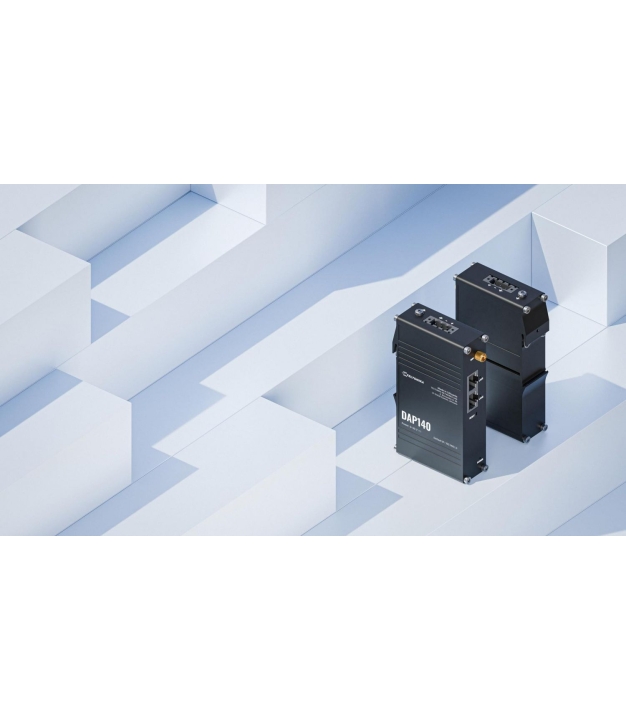

The DAP140 is a Teltonika industrial wireless access point with passive PoE-in, designed to enhance Wi-Fi coverage and performance in industrial environments. Featuring Wi-Fi 4 with Wi-Fi mesh and Fast Roaming, as well as dual RJ45 ports and support of up to 50 simultaneous connections, this wireless access point is integral in maintaining reliable connectivity. An integrated DIN rail bracket, 3-pin power connector, and industrial-grade aluminium housing make the DAP140 the ideal access point for industrial applications.
- Seamless Wi-Fi 4 with Wi-Fi mesh & Fast Roaming
- 2 x 10/100 RJ45
- 1 x 3-pin power connector tailored for industrial use
- Easy mounting for plug-and-play deployment
Specifications
General
Warranty
24
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IP30
Model Name
DAP140000000
Fast Roaming
Yes
Flash Memory
128 MB
Max Data Transfer Rate
300 Mbit/s
Operating Humidity
10 - 90 %
Placement
Shelf, Wall
Reset Button
Yes
Web Based Management
Yes
Physical
Weight
0.150000
Depth
68.6 mm
Height
25 mm
Width
113.1 mm
Colour
Black
Processor
A 5 Ghz
No
A 6 Ghz
No
Built-in Processor
Yes
Maximum Data Transfer Rate 2 4 Ghz
300 Mbit/s
Maximum Tx Power 2 4 Ghz
Yes
Base Clock Speed
Base clock speed (GHz) is the guaranteed sustained frequency the CPU runs at under standard load. It sets the lower bound of performance. Higher base clock helps in software that cannot reach the boost frequency for long (long compilations, sustained simu
580 MHz
Connectivity
Command Line Interface Cli
Yes
LAN Ports
2
Rs 232 Interface
No
Wireless Meshing
Yes
Display
LED Indicators
Power
Additional
SKU
1453230
EAN
4779051843251
Features
Cabling Technology
10/100Base-T(X)
Universal Plug And Play
Yes
Memory
RAM
RAM (Random Access Memory) is the system's working memory where active applications and the operating system live. More RAM means smoother multitasking and bigger files can be edited without swapping to disk. 16 GB is the comfortable minimum for modern sy
16 MB
Battery & Security
Security Protocols
OWE/WPA2-EAP/WPA2-PSK/WPA3-EAP/WPA3-SAE/WPA-EAP/WPA-PSK
Operating System
Operating System
RutOS
Networking
Antenna Connector Type
RP-SMA
Antenna Type
External
Dhcp Client
Yes
Dhcp Server
Yes
Ethernet Data Rates
10/100/1000 Mbit/s
Ipv4 Ipv6 Features
Dual stack IPv4/IPv6
Mac Address Filtering
Yes
Networking Standards
IEEE 802.11b/IEEE 802.11e/IEEE 802.11g/IEEE 802.11k/IEEE 802.11n/IEEE 802.11r/IEEE 802.11s/IEEE 802.11v/IEEE 802.3/IEEE 802.3az/IEEE 802.3u
Power Over Ethernet Poe
Yes
Power Over Ethernet Poe Type Supported
Passive PoE
Network Protocols
TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake On Lan (WOL)
Vpn Support
OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
Wan Connection
Ethernet (RJ-45)
