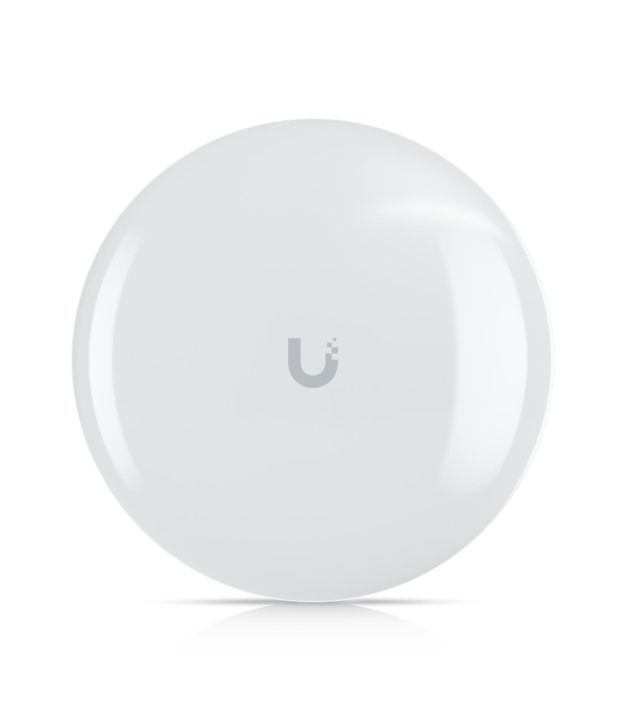

WRL BRIDGE PRO 5GHZ/UDB-PRO UBIQUITI
MPN:
UDB-PRO
Brand:
Ubiquiti
€315.40
/ incl. VAT
€260.66
/ excl. VAT
/ incl. VAT
/ excl. VAT
This product is currently out of stock.
Subscribe to back in stock notification.
Short description
Return Policy
Warranty
Delivery Information
Have questions?
Expert help just one click away
Contact Us
Product Description
5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.
- Link at 5+ km distances with a point-to-point connection to another Device Bridge Pro, or uplink seamlessly with UniFi WiFi Auto-Link
- (2) GbE ports with (1) PoE output for PoE devices
- Powered using PoE/PoE+*
- Pole mounting
- Weatherproof (outdoor exposed)
- Sold as a single unit
Specifications
General
Warranty
12
IP Rating
IP66: dust-tight + jets. IP67: waterproof 1m/30min. IP68: continuous immersion.
IPX6
Certifications
CE/Federal Communications Commission (FCC)/Industry Canada (IC)
Frequency Band
5 GHz
Max Data Transfer Rate
866.7 Mbit/s
Model
UDB-PRO
Modulation
16-QAM/256-QAM/64-QAM/BPSK/QPSK
Operating Humidity
5 - 95 %
Reset Button
Yes
Outdoor Range
5+ km
Physical
Weight
0.515000
Depth
64.3 mm
Height
189.5 mm
Width
189.5 mm
Body Material
Polycarbonate (PC)/Stainless steel
Mounting Type
Pole
Colour
White
Mounting Bracket S Included
Yes
Connectivity
Wi-Fi Standard
Wi-Fi 7 (802.11be) is fastest; Wi-Fi 6/6E: very fast; Wi-Fi 5: standard.
Wi-Fi 5 (802.11ac)
Ethernet (LAN Port)
Wired network port. More stable and faster than Wi-Fi for office and server use.
Yes
Ethernet Lan Interface Type
Gigabit Ethernet
LAN Ports
2
Wi-Fi
Yes
Wi Fi Band
Single-band (5 GHz)
Display
LED Indicators
LAN/Power/Signal strength
Power Led
Yes
Additional
SKU
1426717
EAN
810084698051
Features
Connection Type
Wired & Wireless
Signal Strength
25 dBm
Power
Max Power Draw
9 W
Power Over Ethernet Voltage
48 V
Power Source
DC, PoE
Dc Input Voltage
42.5 - 57 V
PSU Included
Yes
Battery & Security
Security Protocols
WPA2-AES
Networking
Antenna Design
Internal
Antenna Gain Level Max
19 dBi
Antenna Type
2x2
Ethernet Data Rates
10/100/1000 Mbit/s
Networking Standards
IEEE 802.11a/IEEE 802.11ac/IEEE 802.11n
Power Over Ethernet Poe
Yes
Power Over Ethernet Plus Poe Ports Quantity
1
